Ventrolizers (VENT)

Ventrolizers (VENT)

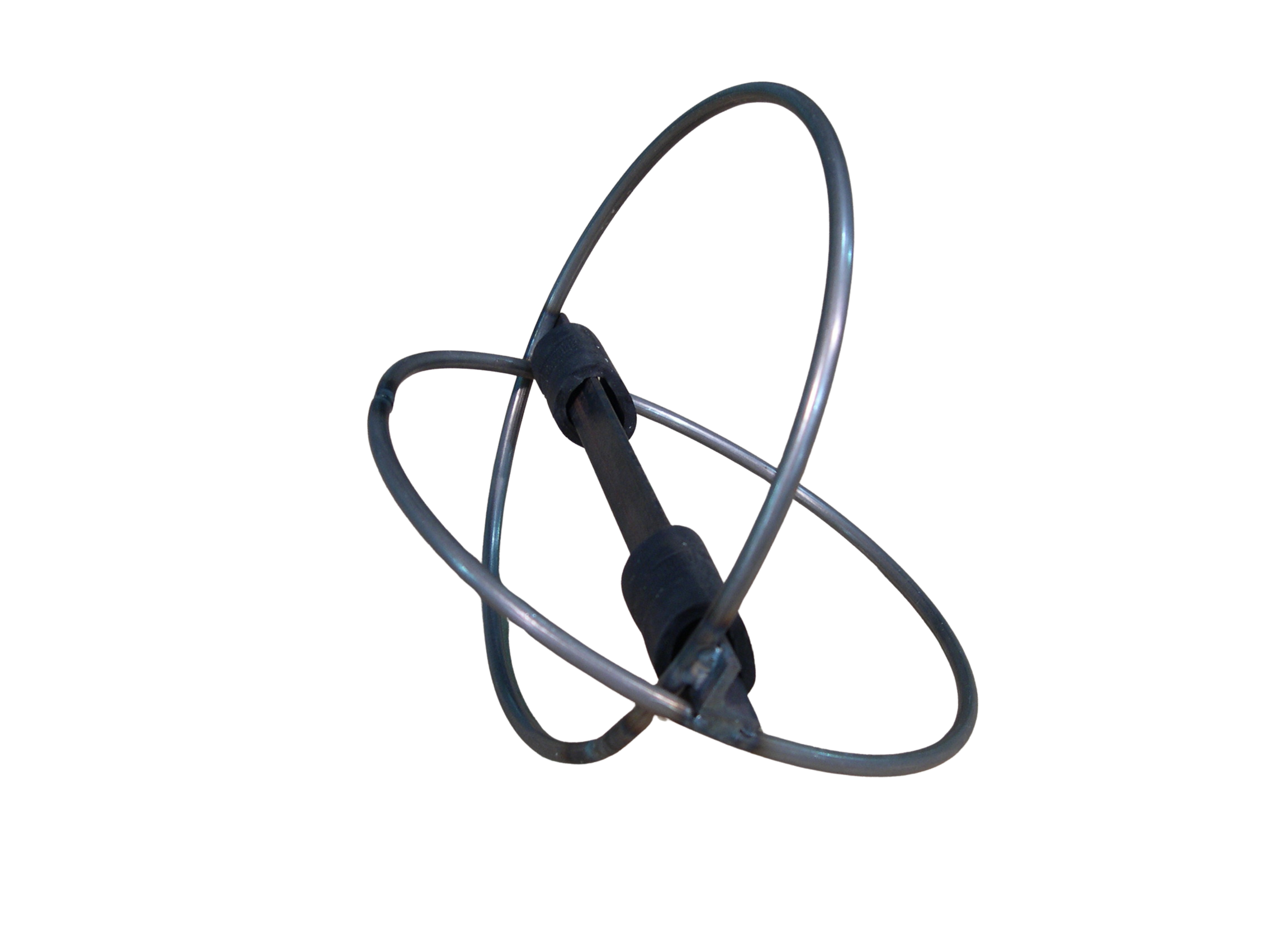

A Ventrolizer is a purpose-built centralizer used in impressed-current cathodic protection (ICCP) groundbeds to hold tubular or long-string anodes in the center of the borehole while keeping adequate separation from the vent/vent-pipe or casing. By maintaining proper clearance, Ventrolizers ensure uniform backfill coverage around the anode, improving current distribution and extending anode life.

Ventrolizers simplify installation: they guide the anode and vent pipe into the hole, prevent binding, and ensure even backfill contact during pumping or pouring. Their use enhances the integrity and performance of deep-well or vertical groundbed cathodic protection (CP) systems.

Key Features & Benefits

Alignment & Groundbed Efficiency:

• Proper Anode Centering: Holds the anode rigidly in the center of the borehole, avoiding contact with vent pipes or casing for uniform backfill encasement.
• Even Backfill Contact: By keeping a consistent 1″ separation from the vent pipe (or other non-conductive surfaces), the entire anode surface is exposed to conductive backfill, improving current discharge and groundbed efficiency.
• Improved Anode Life: Uniform backfill and consistent exposure help prevent localized shielding, reducing risk of uneven consumption and extending service life of anodes.

Installation & Handling Advantages:

• Saves Installation Time: Ventrolizer guides simplify the downward feeding of anode + vent pipe assembly, reducing chances of binding or damage during installation.
• Strong, Durable Construction: Robust build prevents bending or breakage during insertion, even in deeper holes or tight tolerances.
• Easy to Secure: Uses hose-clamp style fasteners around the vent pipe and anode collars for simple, secure assembly in the field.

System Performance & Reliability:

• Uniform Current Distribution: Proper positioning and backfill coverage lead to predictable, efficient ICCP current flow through the anode bed, improving protection performance.
• Reduced Risk of Anode Shielding: Prevents sections of the anode from being “shielded” by vent pipes, which can cause uneven consumption or loss of protective current in some sectors.
• Compatible with Groundbed Standards: Works with standard tubular or vertical anode installations using conductive backfill, ensuring compliance with CP design requirements.

Applications

• Vertical or deep-well ICCP groundbeds, where tubular anodes are lowered into drilled holes.
• Groundbeds for buried pipelines or storage tanks requiring impressed-current (IC) systems.
• Retrofits or upgrades of existing groundbeds needing improved current distribution or re-installation.
• Projects using vent pipes or casings, ensuring anode stays centered and insulated from non-conductive structural components.
• Large-scale CP installations with multiple anode strings or long anode assemblies.
