Rely on Us to Protect Your Investment
CerAnode Technologies is a division of APS Materials, Inc. (APS), a high-tech arc plasma spray coatings company. The present owners and operators of APS, originally part of Monsanto Corporation, incorporated APS as a private company in 1975. During our history, first as part of Monsanto Corporation and now as APS, we have applied thousands of different material systems using the plasma spray process.
CerAnode Technologies International manufactures a full line of Mixed Metal Oxide (MMO) Impressed Current Titanium Anodes for most every Cathodic Protection (CP) application. CerAnode™ anodes are distinctive with their unique arc-plasma sprayed surface architecture enhancement making them the most abrasion resistant MMO anode available. CerAnode™ Power Sources include Transformer Rectifiers (TR’s) and Solar Power Units. Other products include Reference Electrodes, Coupon Reference Probes and other corrosion sensor technology.
In 1984, by virtue of an exclusive technology transfer from the US Army Corps Construction Engineering Research Laboratory requiring the APS process, the CerAnode Technologies division was formed. The US Army Construction Research Laboratory (CERL) granted APS Materials, Inc. an exclusive license under the Davis Bacon Act for the technology it developed and patented.
The CerAnode Charter since its beginning has been to further research, develop and manufacture what is now the CerAnode version of MMO impressed current anodes. Today, CerAnode is recognized worldwide as a manufacturer of a complete line of state-of-the-art, high quality, MMO anodes and related products. CerAnode electrodes are used for cathodic protection, fossil fuel combustion optimization, chlorate and chlorine production, chemical conversion, plating, electrochemical remediation, sanitation, electro osmosis and electro-osmotic-pulse technology.
Other APS divisions use the arc plasma spray processing for a variety of industries including aerospace, biomedical, electronic, etc. APS-BioMedical applies porous titanium and calcium phosphate bioceramic coatings to bone implants used in patients suffering from osteoporosis. APS-Aerospace applies thermal barrier and wear resistant coatings to jet engine parts. APS-Electronics applies corrosion ceramics to chip manufacturing equipment. The CerAnode division uses arc plasma spray processing to manufacture abrasion resistant impressed current anodes by applying a very thin but powerful MMO ceramic coating to different titanium shapes. Made of the most inert materials known to man, CerAnode impressed current anodes are engineered to provide long term reliable service. Innovative cable-to-anode factory connections have virtually eliminated the traditional “weak link” of the Cathodic Protection Industry. The CerAnode cable-to-anode connection is engineered and manufactured under controlled conditions and quality control procedures. The anodes are durable, lightweight, ductile, and dimensionally stable. They are designed for ease of installation.

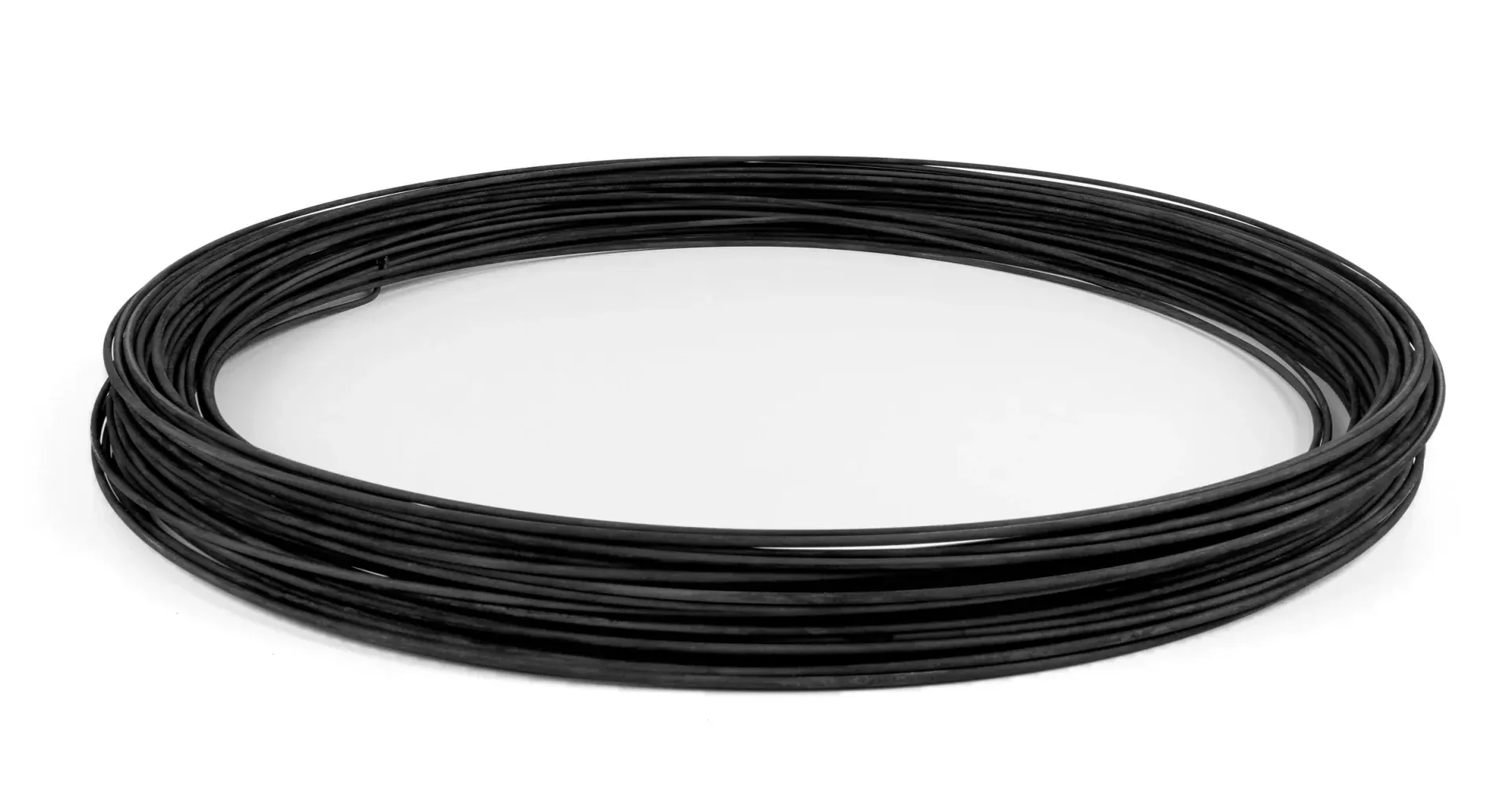

Cathodic Protection MMO Anode Wire (CPW)
CerAnode’s anode wire consists of an ultra thin layer of iridium + tantalum + titanium, mixed metal oxide, deposited onto either solid titanium core (STI version), a copper cored titanium interface (CTC version) or a copper cored niobium-titanium interface (CNC version). Available in nominal standard diameter sizes of 1/16” (1.5mm) OR 1/8” (3mm).

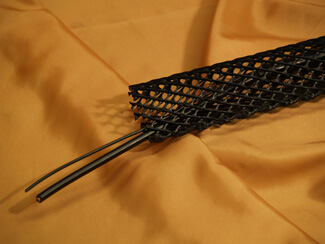

CerAnode CP anode wire is most often supplied in anode assembly configurations such as CerAnode’s Internal Potable Water Anodes, CerAnode’s Tank Anode for Water Storage Tanks, CerAnode’s Tank Bottom Anodes, CerAnode Linear Anodes, as well as for lock gates, intake screens, etc.
Cathodic Protection Cable – Halar® / High Molecular Weight Polyethylene (HMWPE)
Halar/HMWPE is a recommended anode lead wire cable choice for chloride and other harsh environments. Halar is the trade name for ethylene-chlorotrifluoroethylene (ECTFE). Since the electrochemical reaction at the anode in the presence of chlorides results in free chlorine gas generation causing rapid deterioration of most cable insulation, Halar®/HMWPE cable is preferred for use in harsh corrosive environments such as deep anode beds and other environments where chlorides and other harsh chemicals are present. It is also a good choice for oil environments and applications operating at elevated temperatures up to 150°C (302°F). It is the Halar insulation that provides resistance to these environments. The HMWPE jacket is designed to provide mechanical protection for the Halar during installation. The HMWPE jacket is not expected to survive these environments over extended periods.
Cathodic Protection Cable – Kynar® / High Molecular Weight Polyethylene (HMWPE)
Kynar/HMWPE is a recommended anode lead wire cable choice for chloride and other harsh environments. Kynar is the trade name for polyvinylidene fluoride (PVDF). Since the electrochemical reaction at the anode in the presence of chlorides results in free chlorine gas generation causing rapid deterioration of most cable insulation, Kynar®/HMWPE cable is preferred for use in harsh corrosive environments such as deep anode beds and other environments where chlorides and other harsh chemicals are present. It is also a good choice for oil environments and applications operating at elevated temperatures up to 110°C (230°F). It is the Kynar insulation that provides resistance to these environments. The HMWPE jacket is designed to provide mechanical protection for the Kynar during installation. The HMWPE jacket is not expected to survive these environments over extended periods.
CPR-E Tubular End Connect Anode Singles
The Econo-Tubular-Anode is a high quality but economical tubular anode ideal for applications where a single – one anode per cable – is preferred. It is designed for the demands of deep anode beds, shallow beds and the earth’s natural waters. The specially designed end connection allows for quick custom cable lengths. Light weight construction provides ease of handling and economy of shipping.

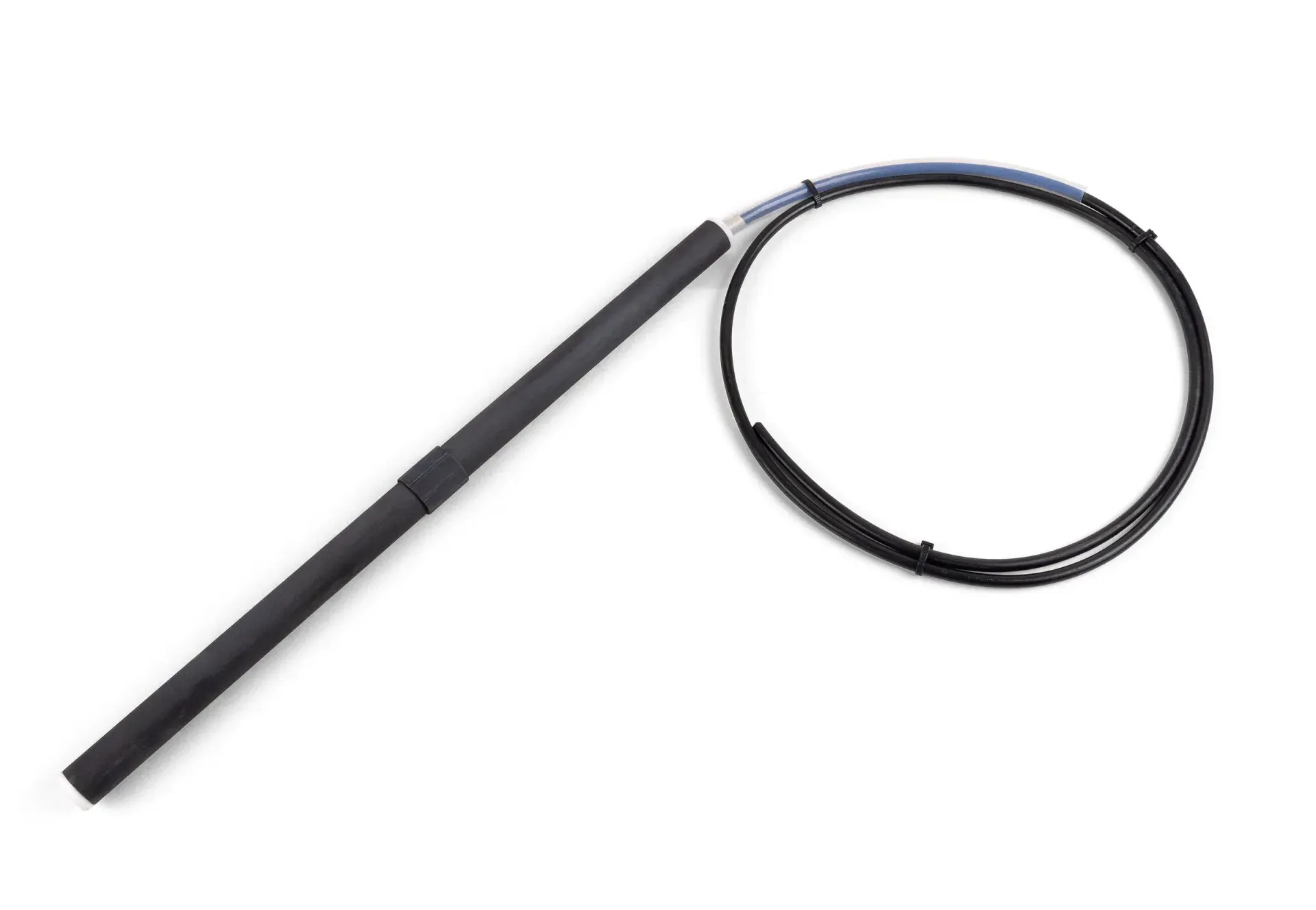

Emmo Tubular Power Rods and Strings
For Use in Deep, Shallow & Horizontal Anode Beds and Earth’s Natural Waters and other CP applications.
CerAnode Power Rod (CPR) tubular anodes are specially designed for deep anode beds including the rigorous demands of open hole applications. They are manufactured using a unique Arc Plasma Spray processing technology developed in the early 80’s which has resulted in a state-of-the-art precious metal oxide anode with a 20-year proven track record. CerAnode’s CONNECTION is moisture proof and corrosion resistant with an ULTRA LOW electrical connection resistance.
SINGLE CENTER-CONNECT, END-CONNECT AND STRING CONFIGURATIONS AVAILABLE. Also consider using CerAnode’s Ventrolizers sold separately for centralizing your tubular anodes. It protects the anode coating from being damaged and is not only engineered for optimal anode performance but is also very economical to purchase..
Internal Water Tank Potable Anode
Made of CerAnode’s 3mm diameter high strength solid CP 1 Titanium MMO anode wire at specified lengths, connected to cable length specified and dielectric end weight. The cable to anode connection is performed using a 200-ton circumferential swage resulting in an ultra-low connection resistance and a tensile strength much greater than the cable. It is isolated with CerAnode MultiSeal™ (multiple layers of dielectric material). The anode assemblies arrive on site in a coil ready to uncoil and lower into the tank.
CerAnode Life-Saver-Anode (LSA) is a low profile MMO disk anode molded into a 12” dielectric shield for mounting directly on the cathode surface by means of integral one inch FRP threaded mounting studs. The anode is totally isolated electrically from the structure to which it is mounted.
It is designed to “Save the Life” of heat exchangers, water boxes, pipes, valves, pumps, dam gates, lock gates, etc.
Two Versions Available:
Underwater Low Resistant connector – purchased separately, allows for diver replacement if retrofitting is ever required. or Terminal lug version – ideal where there is no water at the connection end of the anode.
Mixed Metal Oxide Anode Rod
CerAnode-Rod-Assemblies (CRA) are high quality mixed metal oxide anodes manufactured with special factory connections. They are extremely rugged and powerful making them an ideal choice for a variety of cathodic protection applications.
MMO Canister Anodes
The same CerAnode high quality MMO impressed current anode with a <100 micro ohm connection resistance PREPACKAGE in calcined petroleum carbon backfill, ready to be put in place. Canister anodes can be used for various applications such as underground and aboveground storage tanks and along pipelines.
Standard steel can size 3” x 60” – other sizes available.
Prepackaged Sock Version also available.
MMO High Current Robust Process Anode (RPA)
CerAnode’s RUGGEDODE™ anode is TOUGH.

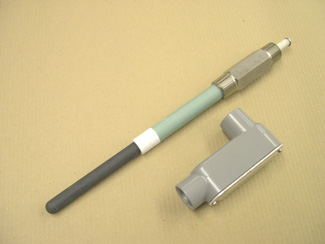

Used for heat exchanger, water boxes, pipes, valves, pumps and other in-process applications and features an arc-plasma sprayed dielectric interface between the anode rod and process fitting resulting in greater mechanical strength, dielectric strength and seal integrity.
It is made of a titanium substrate (a strong light weight aerospace metal) and activated with an inert conductive ceramic coating. It is then molded to a plated steel process fitting in conjunction with a plasma sprayed dielectric-ceramic epoxy-FRP interface resulting in high mechanical strength, an excellent process seal and a very high insulation resistance. The anode maintains dimensional stability over its design life.
Designed to fit standard off-the-shelf LB or GALB junction box for rigid conduit or cable glands. Available in a variety of standard and custom sizes.
Multi-Circuit Automatic Remote-Ready Rectifier
Selective operating & control modes per module:
- Constant Potential
- IR Free
- Constant Voltage
- Constant Current Communication Options and Features
- Remote-Ready for Control & Monitoring via Ethernet Wireless Comm Port
- RS -232 and RS-485 communication port
- Modbus + Hostlink Communication ProtocolsGeneral Characteristics and Features:
- Stability (+/- 5%).
- Rating output parameters (Electronics +/- 1%)
- Operating Temperature 40oC
- Optional Battery Backup for Operation Status Transmission and Alarms
- 4-inch Amber LCD HMI with touchscreen for local parameter and setpoint display
- Optional 7-inch color HMI with Touchscreen for local parameter and setpoint displayCabinet Construction Nema 3R – (boards are conformal coated)
Installation, Calibration, Maintenance, Repair & Operation Manual
Optional Onsite Short Term Technical Specialist for Installation Assistance & Training Optional customized SCADA Software
Oil-Cooled Cathodic Protection Rectifier Standard & Explosion Proof
The Standard Oil-Cooled Rectifier is a heavy duty ruggedized rectifier made of hot dipped galvanized steel. It has external fins for added strength and added cooling. All units are equipped with hinged lid; lid brace and heavy duty draw pull latches as standard features.
PiggyBack™ MMO Linear Anode Technology
CerAnode™ developed MMO linear anode technology and assigned the trademark PiggyBack™ in 1992. The technology is used around the world for applications including tank bottoms, underground vessels, bullet tanks and pipelines. The first PiggyBack™ installation was in 1993. Since that time continuous close-proximity anode-to-cathode applications have become a common design approach. In many applications this technology has significant advantages compared to traditional discrete anode arrangements. The technology provides optimized current distribution, optimized polarization characteristics, optimized groundbed resistance, optimized interference mitigation and better than ever power efficiencies.
Depending on the application the linear anode can be ordered with or without Coke Sock.
The sock material employed is GREEN in that it is environmentally safe. The anode’s sock decomposes leaving a conductive horizontal column at the position where it was buried allowing protection currents to pass freely to the structure. The MMO anode core is firmly positioned to protect the structure for many decades.
Since CerAnode manufactures the key components of the system, the product specification can easily be customized. Parameters such as design life, current rating, wire diameter, cable size and insulation type can be specified and manufactured quickly.
The Cross Piece Ventrolizer Bar is factory assembled on the anode end plugs. The MMO anode arrives onsite with its integral Ventrolizers, ready to tape or tie-wrap to an AllVent™ Pipe. This approach eliminates centralizer hassle in the field. The anode surface is not masked or damaged. It is rugged with no loose parts.
Solar Powered Cathodic Protection
CerAnode has the answer when your groundbed is remote and away from a power source. CerAnode can tailor a solar system to meet your application in your particular geographical location. We design and supply a system based on the amount of solar energy at site and your groundbed requirements that are specific to the application. The CerAnode standard controller will provide control of the groundbed current, voltage and potential.
Special Anode Centralizer for MMO Tubular Anodes
This universal MMO centralizer design is simple but very effective. It is ideal for all types of MMO anodes. If improper centralizer technology is used with MMO anodes the anode life can be compromised. This centralizer is equipped with rubber bumpers to assure that the MMO anode’s advertised life is not compromised. This Centralizer is also a Ventrolizer. It optimally orients the anode in the hole and optimally orients the anode in relation to the vent pipe using strong tie wraps supplied with unit.
CerAnode Strip Anodes for internal pipe, valve and locks & dams.
CerAnode EMMO Strip Anodes are surface mount anodes used for internal pipe & internal valve protection, locks, dams, etc. as well as bulkheads, piers, piles, and power plant water intakes. They are constructed to provide exceptional impact resistance, mechanical strength, chemical resistance & electrochemical durability. The basic design of this anode allows for easy modification to meet the demands of varied applications requiring a difference current rating, mounting technique or cable attachment.
Underwater Connector Anode Disks & Strips and Reference Electrodes
The CerAnode Underwater Connector (pictured below with a Strip Anode) makes installation easy and connection integrity foolproof. It features <100 micro-ohm electrical resistance and a high pressure environmental seal. Our Disk Anode, Strip Anode and special Reference Electrode feature these dielectric mounting studs eliminating any additional dielectrics or
spacers. O-Ring and Compression seal technology is used to assure foolproof environmental isolation. The underwater connection allows for diver replacement if retrofitting is ever required.
- HMWPE Cable Specification
- Double Coupon Housing

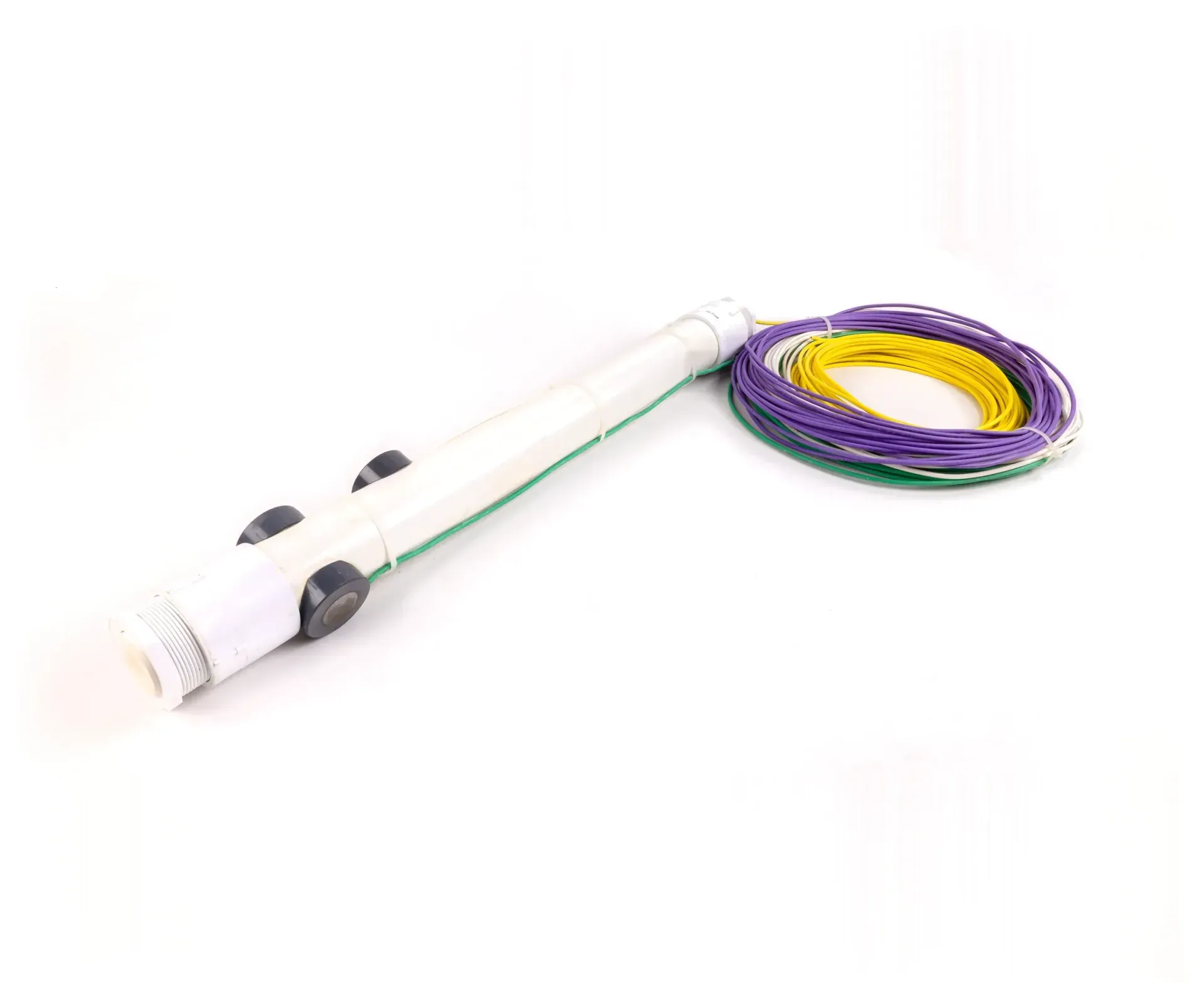

- Triple Coupon Housing
- IR-Free Stationary Underground
- Portable Reference Electrode Water

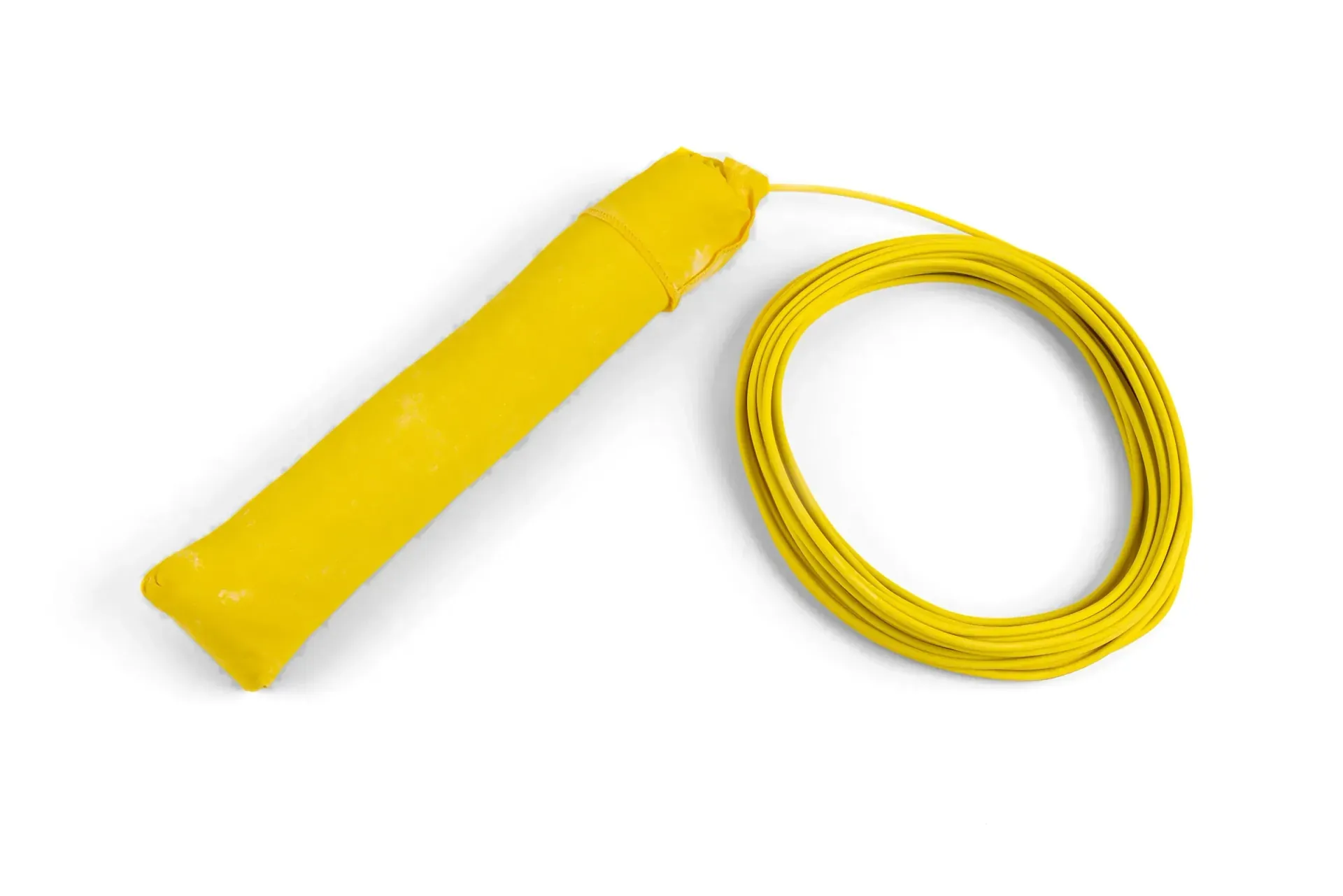

- Stationary Underground Reference Electrodes
- Stationary Water Service Reference Electrodes
- Thru-Wall NPI Reference Electrode
- Ag/AgCI High Stability Reference Electrode
- Coupon Reference Probe
