Our Impressed-Current Anode Products

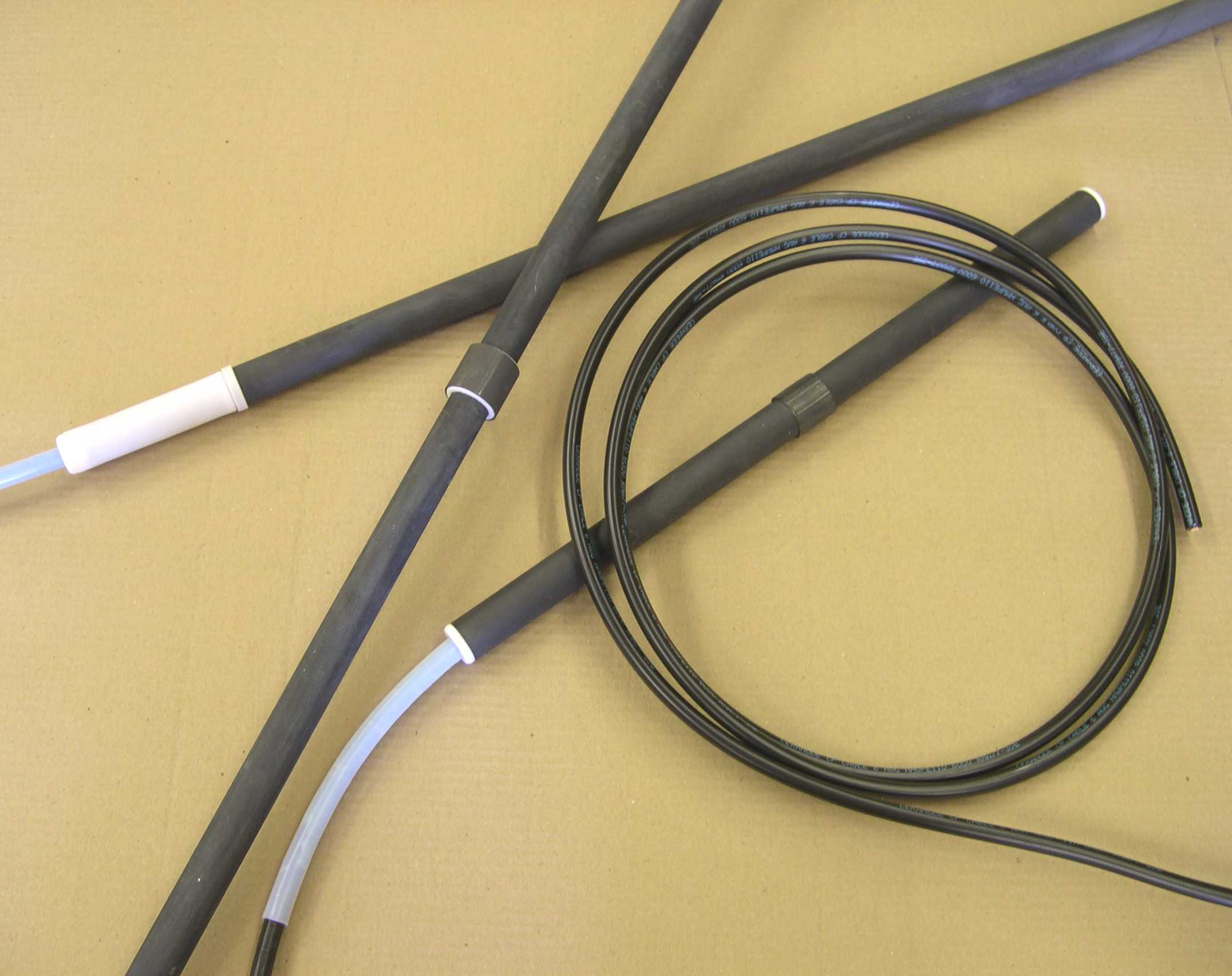

EMMO Tubular Anodes

Our Enhanced Mixed Metal Oxide (EMMO) Tubular Anodes feature a proprietary ceramic- metallic coating that provides superior current distribution and exceptional longevity in harsh environments.

Lifespan: 25-30+ years

Environments: Soil, freshwater, seawater

Learn More

CerAnode Rod Assembly (CRA)

CerAnode’s CRA CerAnode Rod Assembly is a factory-assembled MMO mixed-metal-oxide rod anode designed for impressed-current cathodic protection (ICCP) systems. Its titanium substrate and ceramic MMO coating deliver high-performance corrosion resistance and long life.

Lifespan: 25-30+ years

Environments: Soil, freshwater, seawater

Learn More

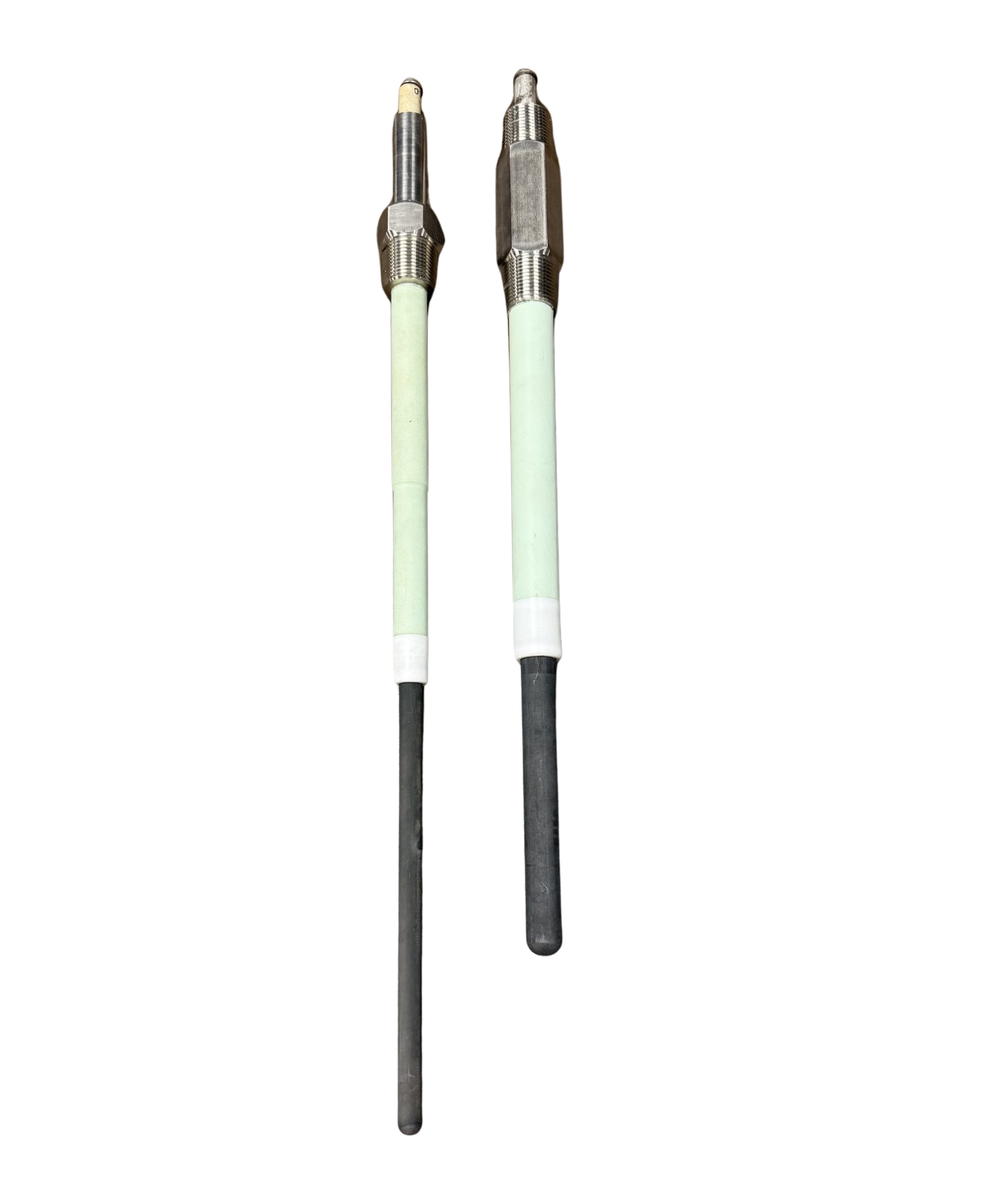

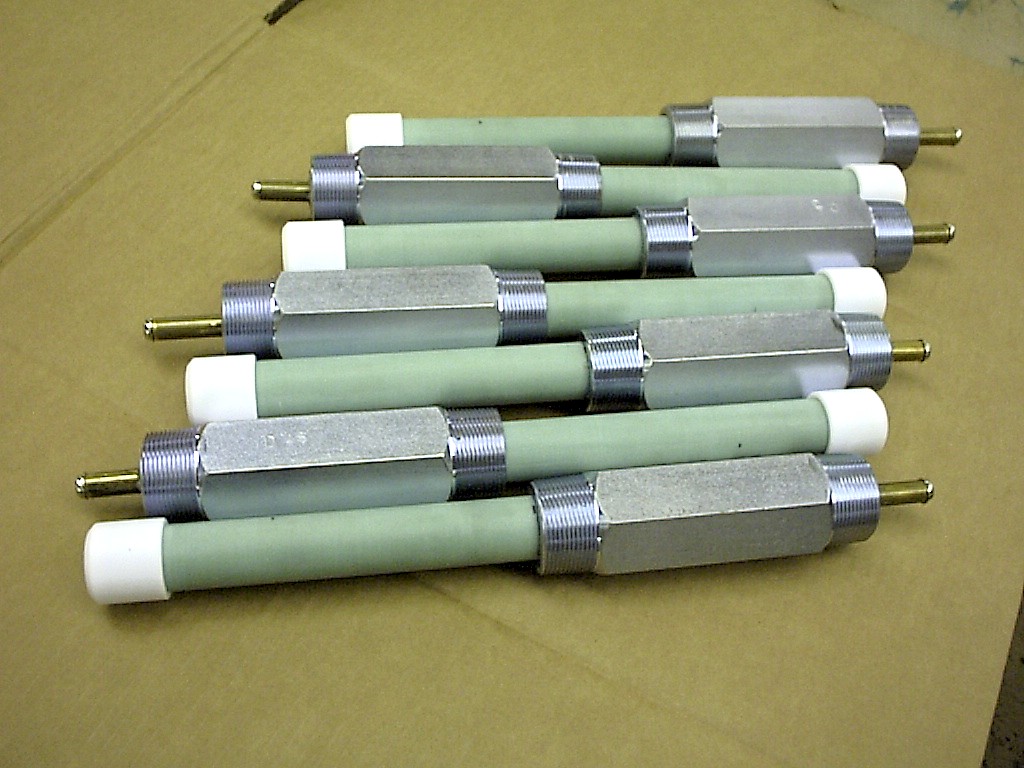

Process Anode (RPA)

Flexible MMO Wire Anodes provide versatile protection solutions for complex geometries and confined spaces where traditional rigid anodes cannot be easily installed.

Lifespan: 25-30+ years

Environments: Soil, freshwater, seawater

Learn More

Canister Anode (CAC-CPR)

The CerAnode CAC-CPR Canister Anode is a factory-assembled impressed current MMO mixed-metal-oxide anode, pre-packaged in a steel canister with Loresco® Coke backfill. It’s ready to install in cathodic protection systems across soil or water environments.

Lifespan: 25-30+ years

Environments: Soil, freshwater, seawater

Learn More

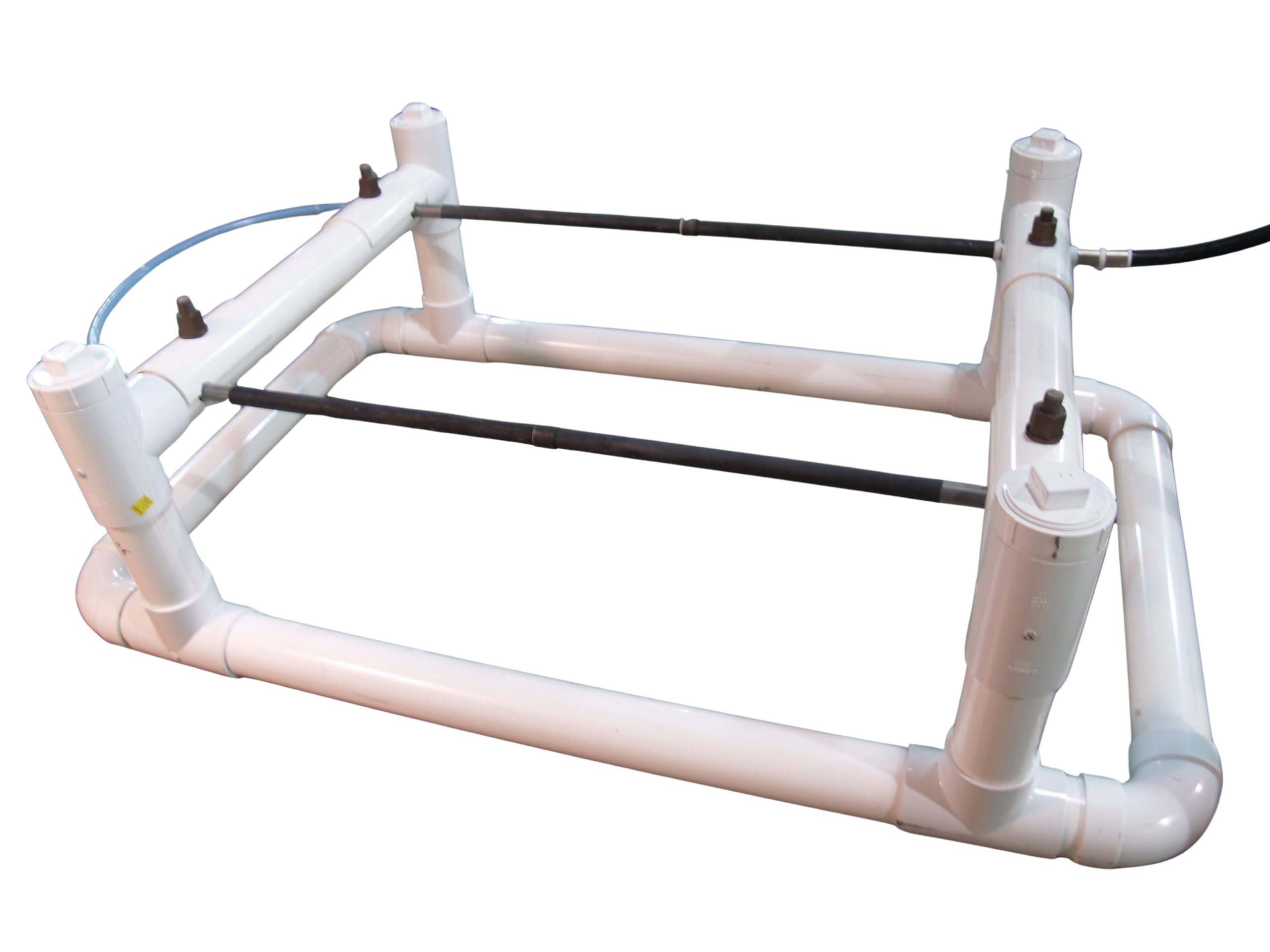

SLED Anode (SLED)

MMO Mesh Anodes provide uniform current distribution across large concrete surfaces, ideal for comprehensive protection of reinforced concrete structures in aggressive environments.

Lifespan: 25-30+ years

Environments: Soil, freshwater, seawater

Learn More

Expandable Rod Anode (EAR)

The CerAnode EAR Expandable Rod Anode is a high-performance, factory-assembled MMO mixed-metal-oxide rod designed for impressed current cathodic protection (ICCP) systems. Its unique expandable design lets it be tensioned once installed, enabling optimized current distribution over long runs and variable environments. The EAR delivers reliable protection while minimizing field handling and installation risk.

Lifespan: 25-30+ years

Environments: Soil, freshwater, seawater

Learn More

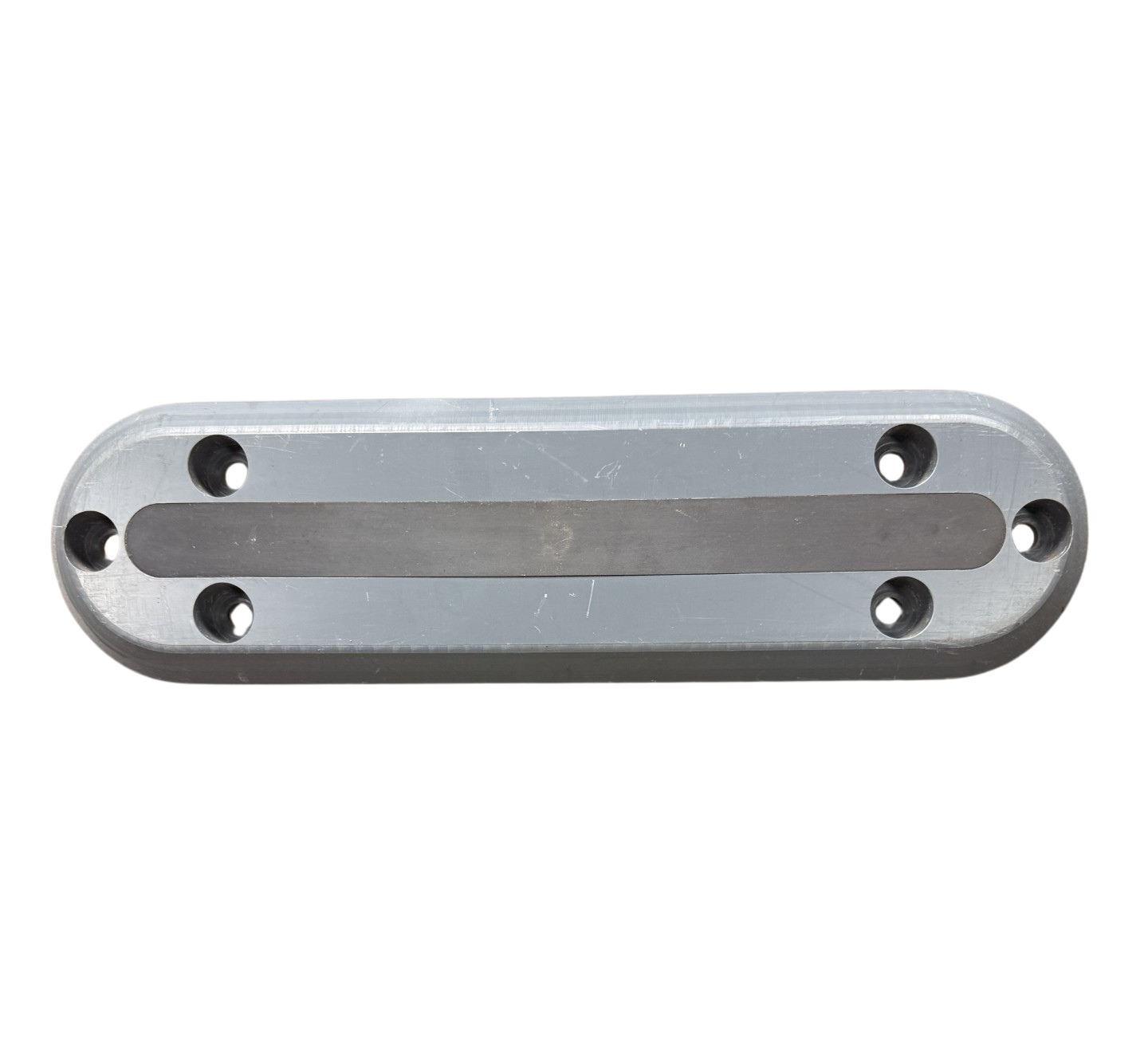

Strip Anode (CAS)

CerAnode’s CAS Strip Anodes are low-profile, surface-mount impressed-current (IC) anodes engineered for reliable cathodic protection of confined and marine structures. They deliver controlled, distributed current for internal piping, valves, lock gates, piers, piles, bulkheads, and power-plant water intakes.
Learn More

Disc Anodes (LSA)

CerAnode’s LSA Life-Saver Anode is a low-profile disc anode engineered for impressed-current cathodic protection (ICCP). The disc is built with EMMO™ enhanced mixed-metal-oxide coating and molded into a dielectric housing so it can be mounted directly to a structure without electrical interference. It offers reliable, uniform current distribution to guard heat exchangers, valves, pumps, lock gates, and other critical components.
Learn More

Rod Anode (CAR)

CerAnode’s CAR Rod Anode is a high-performance, MMO mixed-metal-oxide titanium rod designed for impressed-current cathodic protection (ICCP). It delivers reliable current output and long service life for a wide variety of structures, from internal pipelines to marine and industrial systems. Built with a robust titanium substrate and durable precious-metal-oxide coating, the CAR Rod provides stable, predictable electrochemical performance.
Learn More

Technical Specifications

Anode Type Dimensions Current Output Consumption Rate Substrate Coating
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO

Installation & Support

Our impressed-current anodes are designed for straightforward installation and come with comprehensive technical support. Our engineering team can assist with system design, installation guidelines, and ongoing maintenance recommendations.

Each anode is supplied with detailed installation instructions, connection diagrams, and material certificates. We also offer on-site technical assistance and training for contractors and field personnel.

Services Available
  • System design and engineering
  • Installation supervision
  • Commissioning assistance
  • Performance testing
  • Maintenance training
  • Technical documentation

Need Help Selecting the Right Product?

Our team of experts is ready to help you find the perfect cathodic protection solution for your specific application. Contact us today for personalized assistance

Contact us
