What Are Impressed-Current Anodes?

Impressed-current anodes are components of cathodic protection systems that use an external power source to impress current onto a structure, counteracting the natural corrosion process. Unlike sacrificial anodes, impressed-current systems can protect larger structures and provide adjustable levels of protection based on environmental conditions.

Key Benefits
  • Extended service life (15-30+ years)
  • Higher current output capability
  • Adaptable protection levels
  • Effective for large structures
  • Suitable for high-resistivity environments
  • Remote monitoring capabilities
Common Applications
  • Pipeline protection (oil, gas, water)
  • Marine structures and vessels
  • Underground storage tanks
  • Reinforced concrete structures
  • Industrial water systems
  • Well casings and offshore platforms

Our Impressed-Current Anode Products

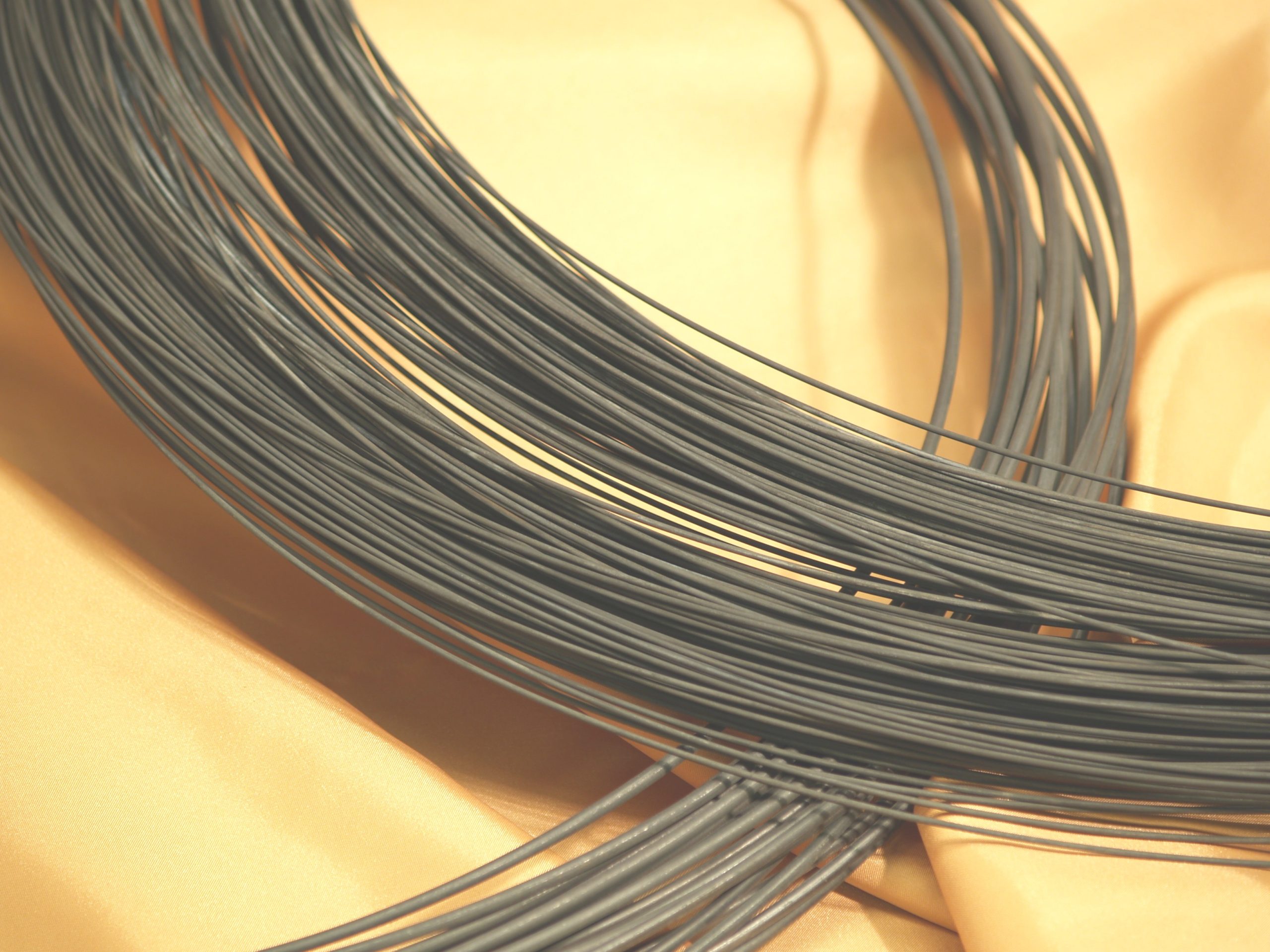

MMO Anode Wire (CPW)

CerAnode’s CPW MMO Mixed-Metal-Oxide Anode Wire is a flexible, high-performance linear anode for impressed-current cathodic protection (ICCP). Engineered with a thin noble-metal-oxide coating on a core wire, it provides a durable, low-consumption solution for uniform current distribution.

Lifespan: 25-30+ years

Environments: Soil, freshwater, seawater

Learn More

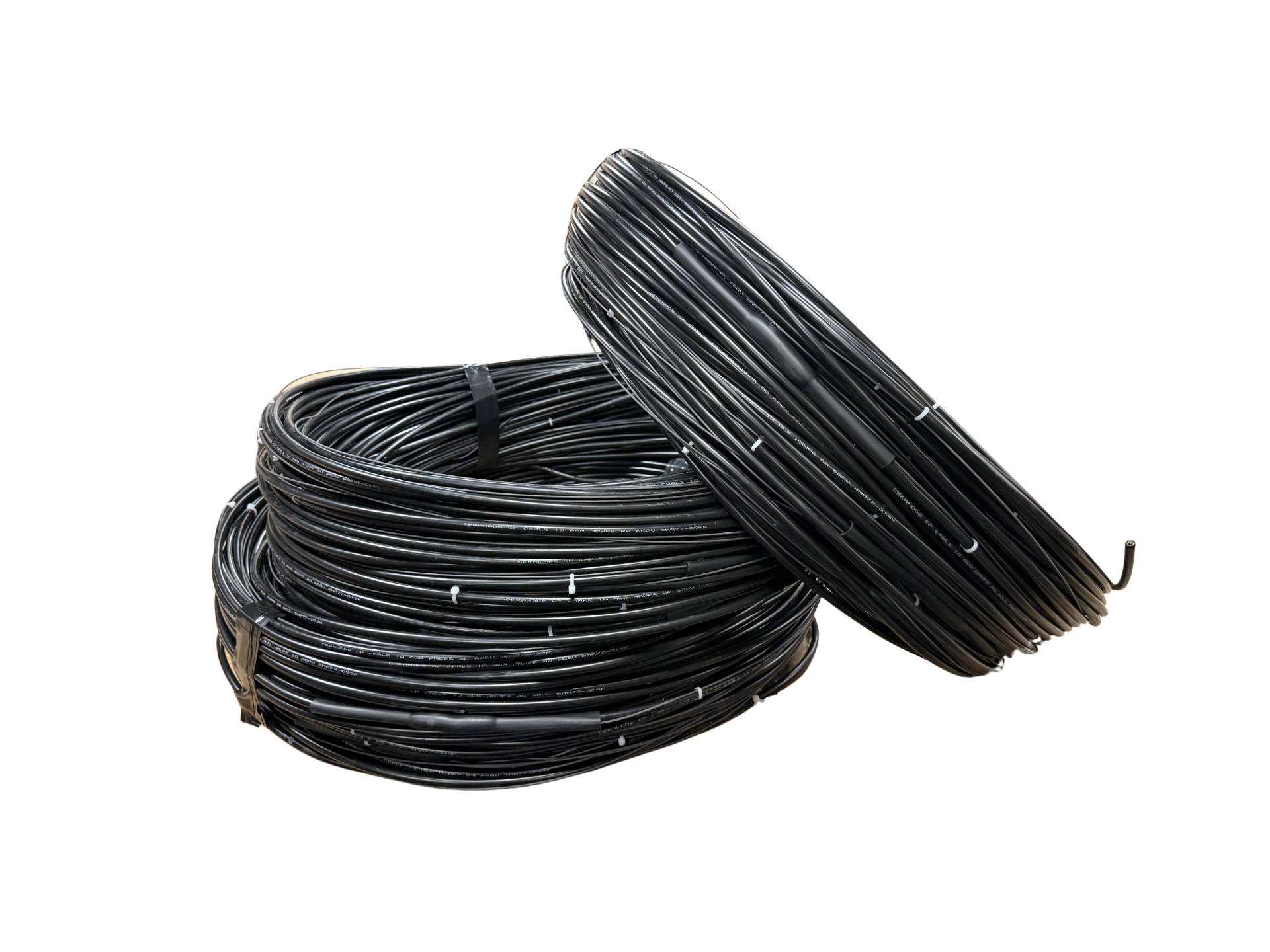

Linear Anode (PBL)

CerAnode’s PBL PiggyBack™ Linear is a continuous, MMO mixed-metal-oxide linear anode designed for impressed-current cathodic protection (ICCP). Engineered for close-proximity deployment, it runs parallel to the structure being protected, delivering efficient, uniform current.

Lifespan: 25-30+ years

Environments: Soil, freshwater, seawater

Learn More

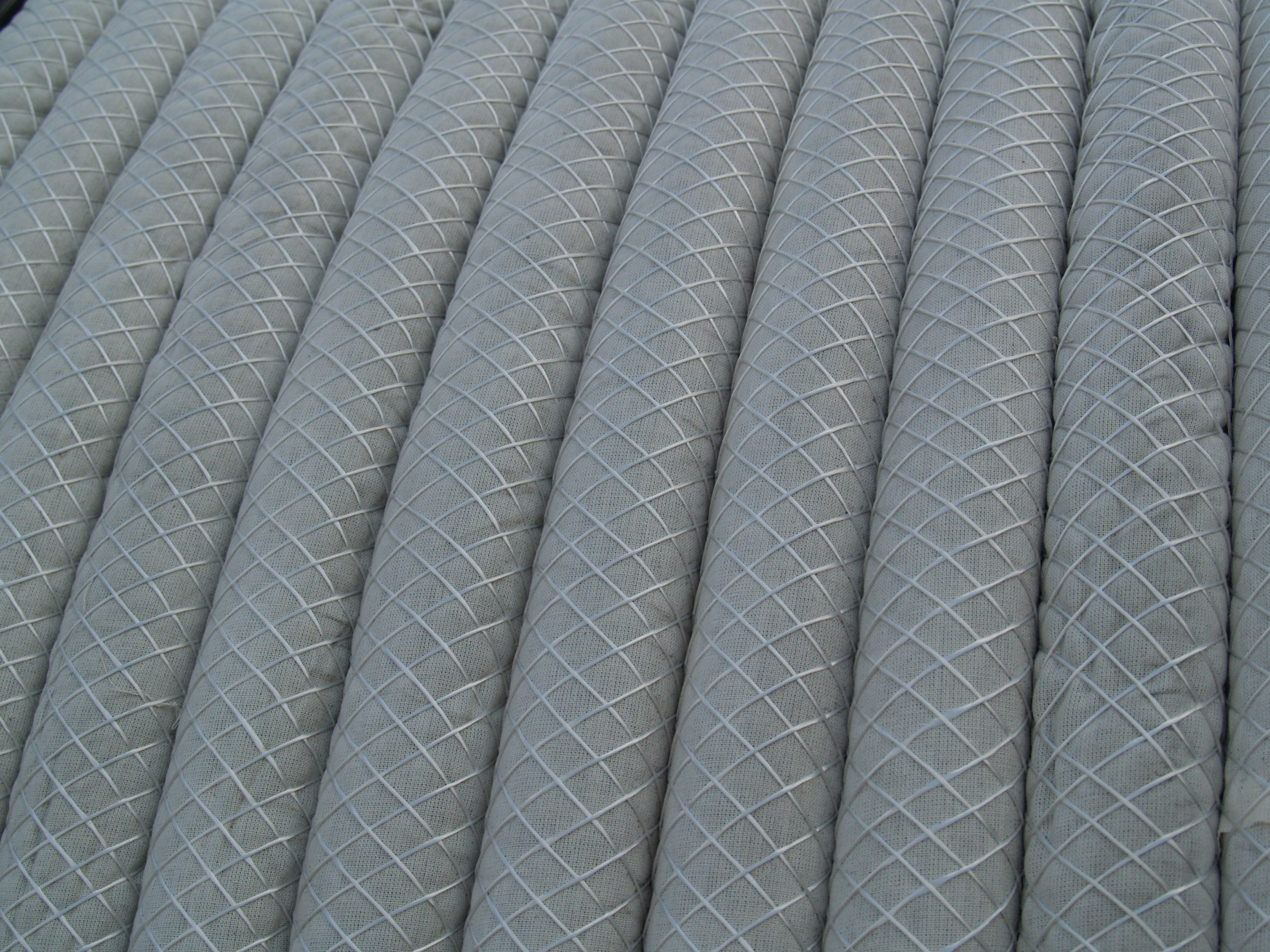

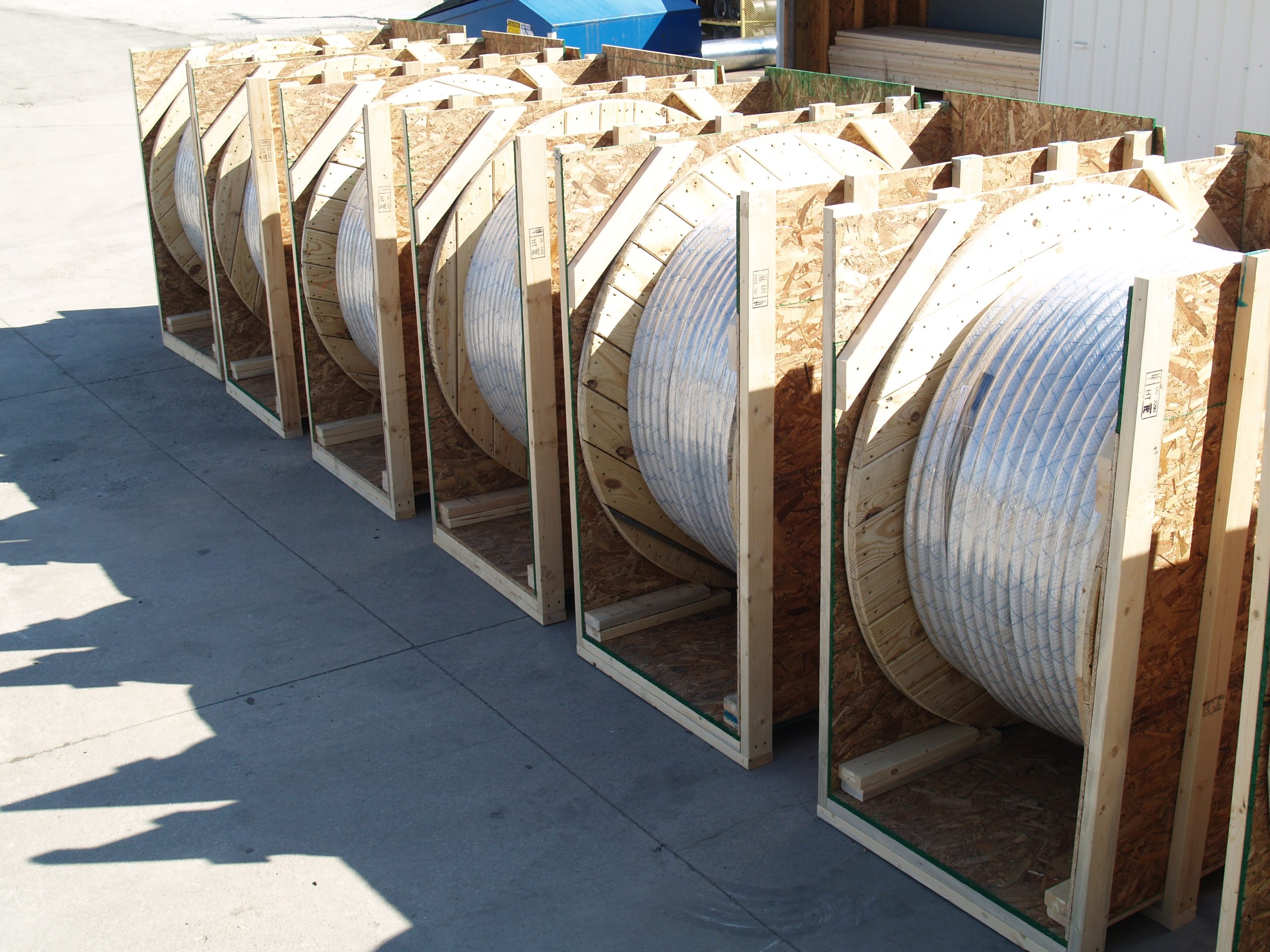

Linear Anode in Coke Sock (PBL-CS)

CerAnode’s PBL-CS PiggyBack™ Linear in Coke Sock is a continuous MMO mixed-metal-oxide linear anode packaged inside a porous “coke sock” and supplied ready-to-lay for close-proximity impressed-current cathodic protection (ICCP).

Lifespan: 25-30+ years

Environments: Soil, freshwater, seawater

Learn More

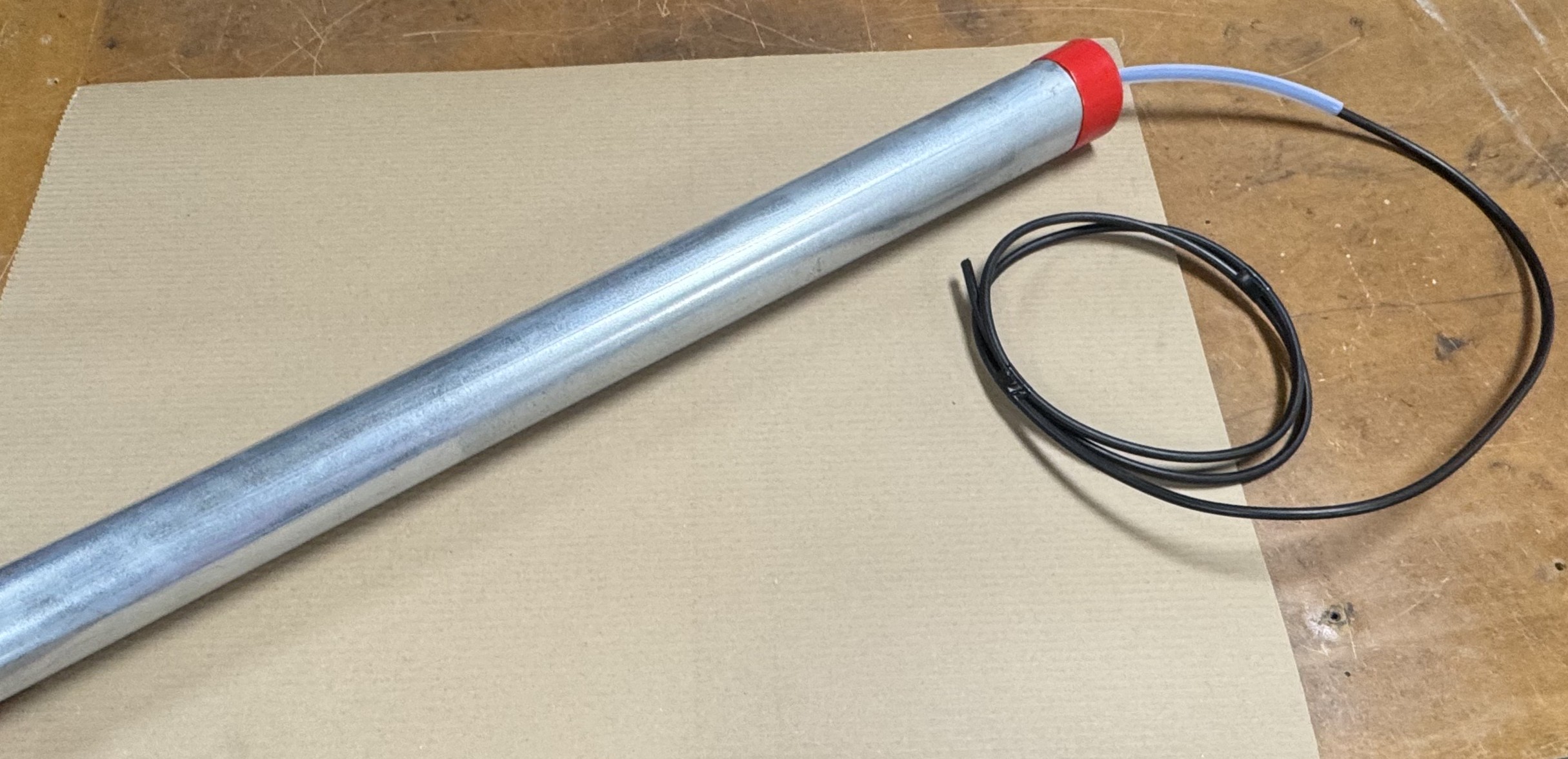

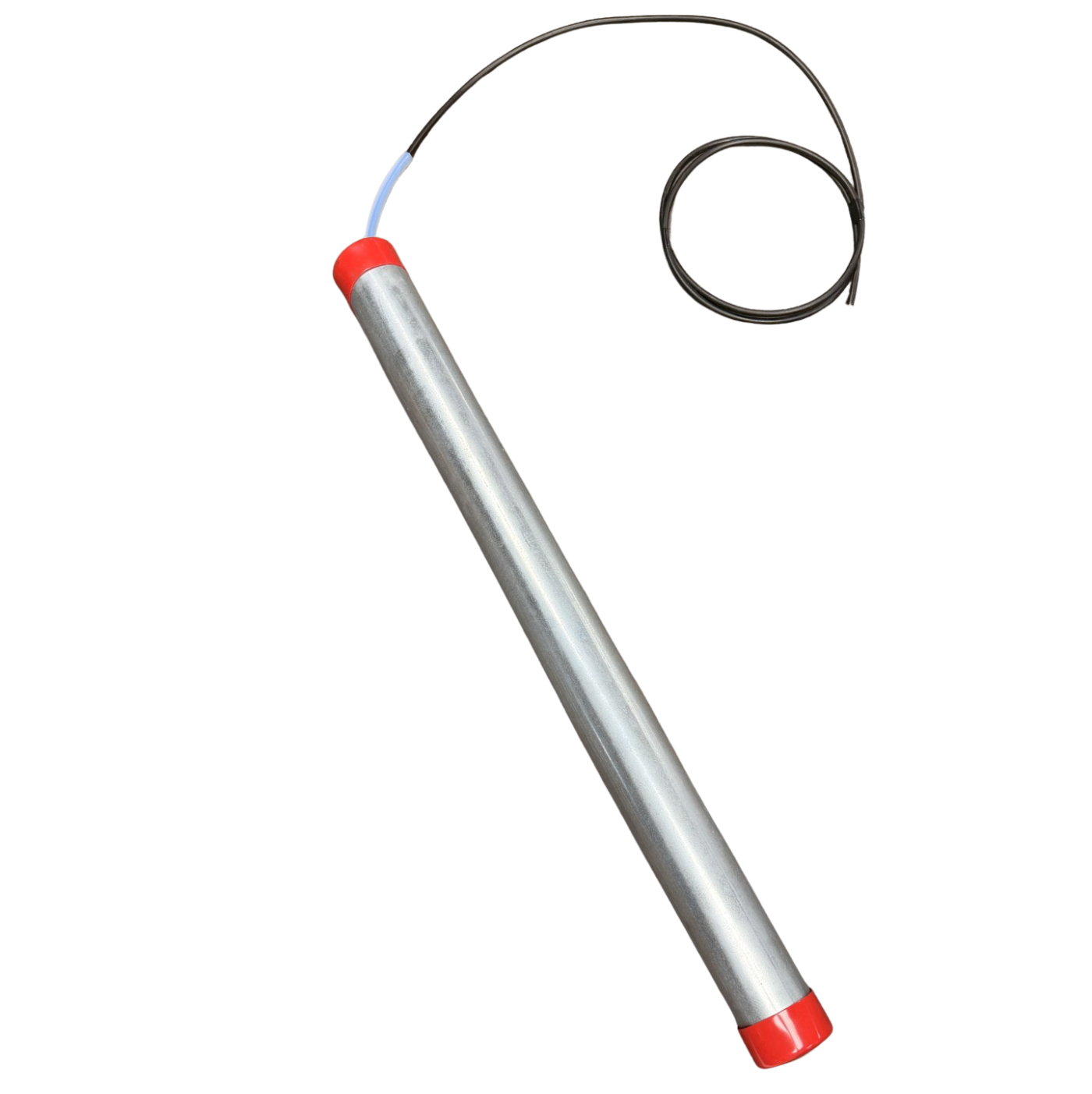

Canister Anodes (CAC-CPW)

CerAnode’s CAC CPW Canister Anode is a factory-preassembled impressed-current anode pre-packed in a rugged steel canister with highly conductive backfill.

Lifespan: 25-30+ years

Environments: Soil, freshwater, seawater

Learn More

Technical Specifications

Anode Type Dimensions Current Output Consumption Rate Substrate Coating
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO
EMMO Tubular 19mm × 1000mm Up to 4.5 A 1-2 mg/A-yr Titanium Grade 1 Enhanced MMO

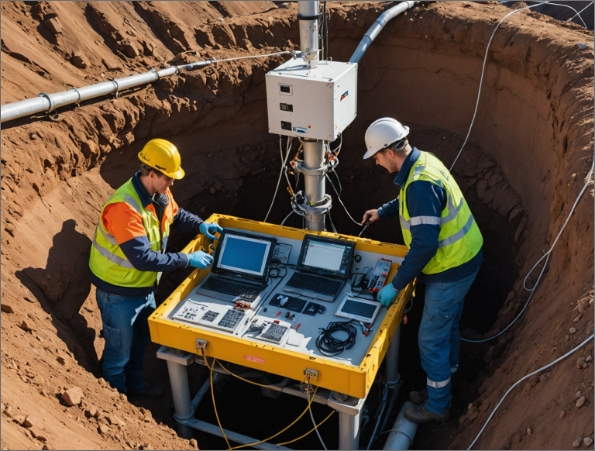

Installation & Support

Our impressed-current anodes are designed for straightforward installation and come with comprehensive technical support. Our engineering team can assist with system design, installation guidelines, and ongoing maintenance recommendations.

Each anode is supplied with detailed installation instructions, connection diagrams, and material certificates. We also offer on-site technical assistance and training for contractors and field personnel.

Services Available
  • System design and engineering
  • Installation supervision
  • Commissioning assistance
  • Performance testing
  • Maintenance training
  • Technical documentation

Need Help Selecting the Right Product?

Our team of experts is ready to help you find the perfect cathodic protection solution for your specific application. Contact us today for personalized assistance

Contact us
