Linear Anode (PBL)

CerAnode’s PBL PiggyBack™ Linear is a continuous, MMO mixed-metal-oxide linear anode designed for impressed-current cathodic protection (ICCP). Engineered for close-proximity deployment, it runs parallel to the structure being protected, delivering efficient, uniform current.

The PBL is flexible, arrives on-site ready to lay in place, and can be customized in design-life, current rating, wire diameter, insulation, and more.

This linear technology minimizes ground-bed resistance, optimizes current distribution, and is particularly power-efficient.

Key Features & Benefits

Construction & Materials

MMO-Coated Core: Uses Enhanced Mixed-Metal-Oxide (EMMO™) coating for high stability, low depletion, and long life.
Flexible Linear Geometry: Continuous cable-like anode design that follows the structure’s symmetry for even protection.
Customizable Specifications: Design life, current output, wire diameter, and insulation type can be specified to match project requirements.

Electrical Performance

Optimized Current Distribution: The PiggyBack design spreads current uniformly to minimize hot spots and overprotection.
High Power Efficiency: Low ground-bed resistance reduces energy consumption and maximizes system efficiency.
Interference Mitigation: Its continuous design helps reduce stray current and interference with nearby structures.

Durability & Environmental Compatibility

Inert Materials: The core and insulation are made from environmentally safe, benign materials.
Long Lifetime: Engineered for decades of service, depending on design life specification.
Adaptable for Various Environments: Suitable for use in buried, buried-near, or tank-bottom applications.

Easy Installation & Maintenance

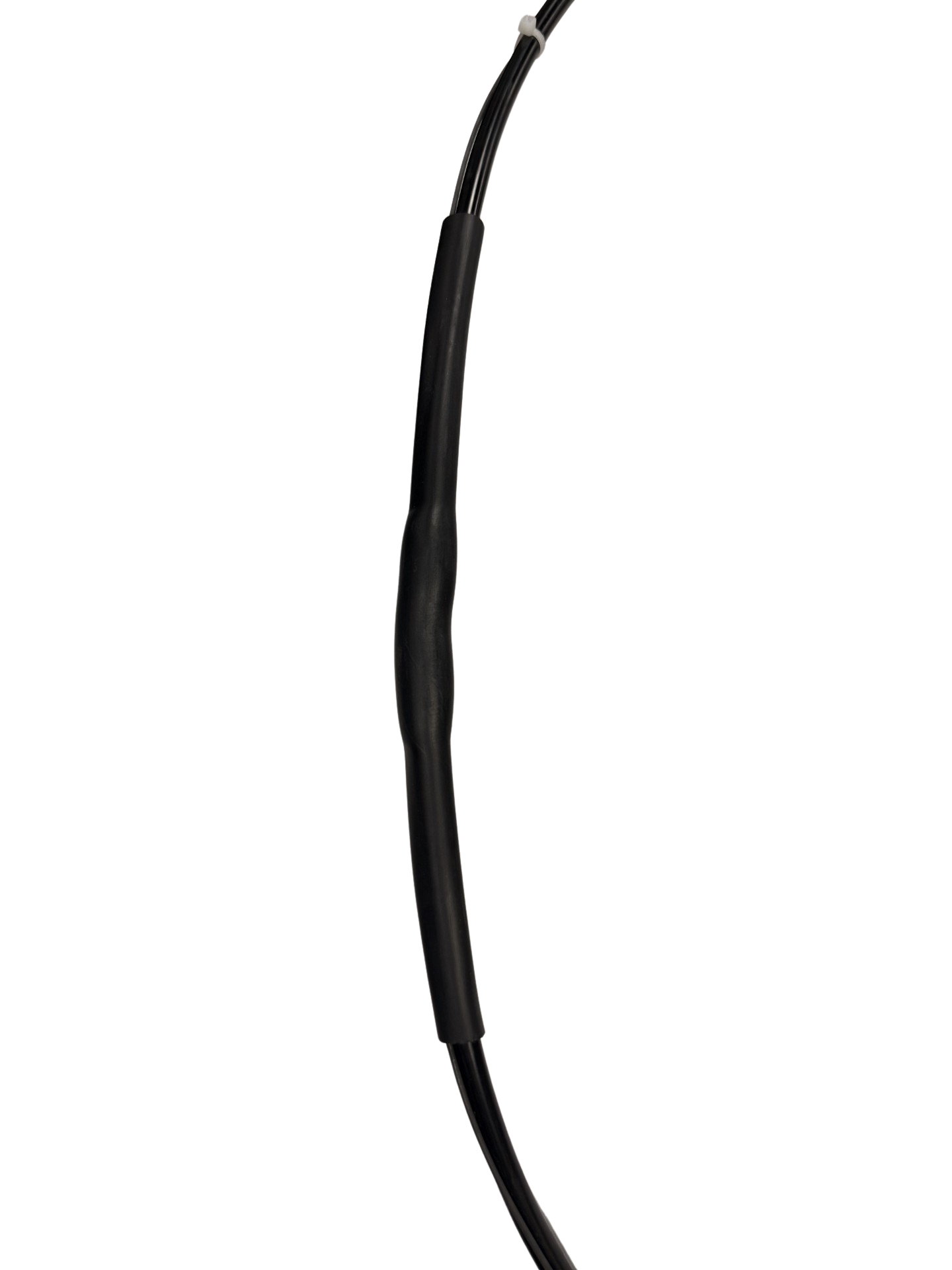

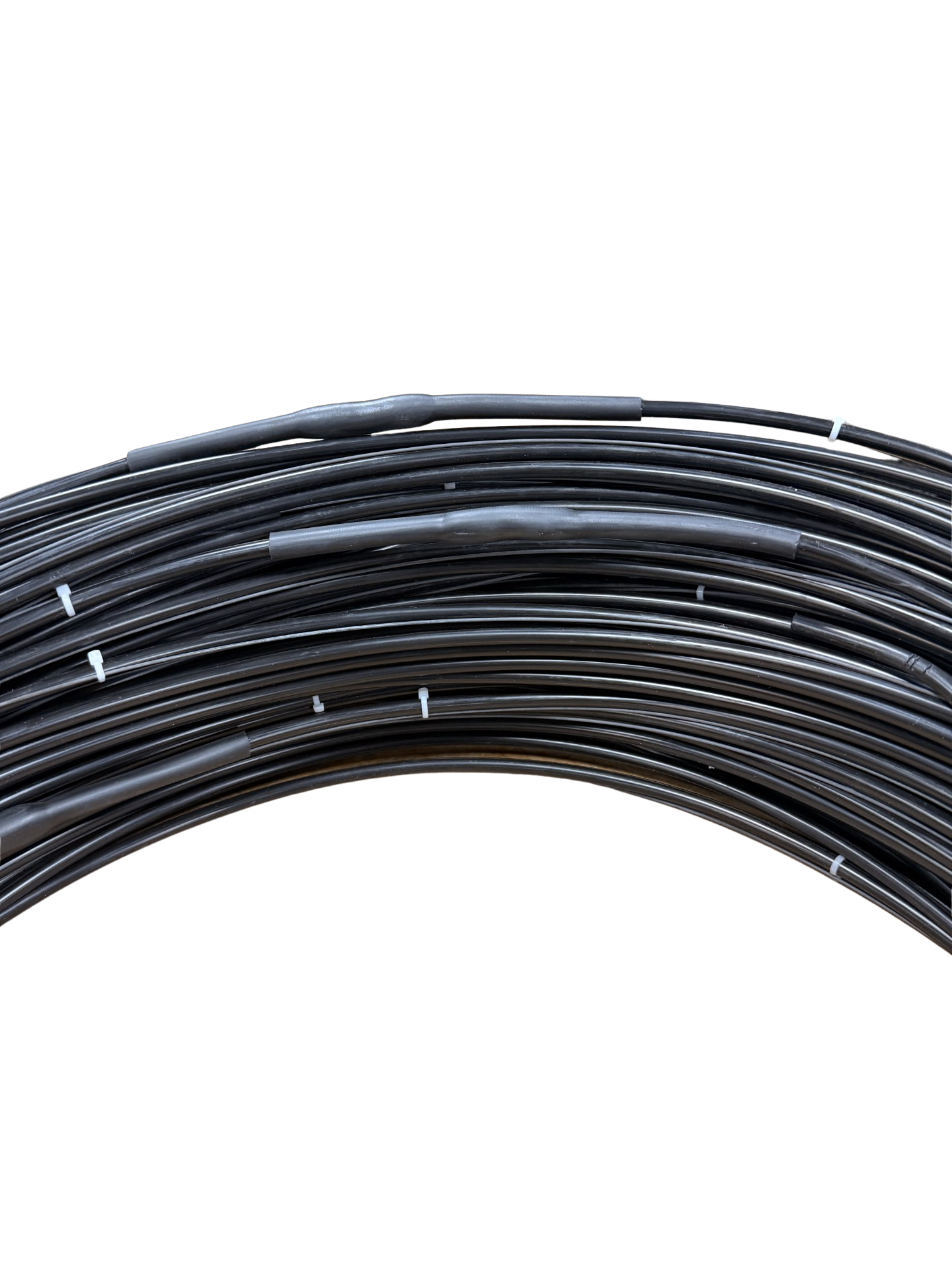

Factory-Ready: Delivered on a spool, ready to install, avoiding complex field splices.
Design-Life Flexibility: The system can be specified with different design lives, current output, wire diameter, and insulation.
Low Testing Overhead: Simplified monitoring and maintenance with fewer connection points and uniform current output.

Applications

Above-ground storage tank (AST) bottom protection (especially in piggyback configuration)
Underground or buried vessels and tanks
Pipeline cathodic protection, where the linear anode runs parallel to the pipeline
Close-proximity anode bed installations in constrained or tight spaces
Structures requiring uniform current distribution and interference mitigation

Installation & Accessories

Place Anode: Lay the PBL linear anode along the structure following the design layout, maintaining correct spacing.
Secure Anode: Secure the anode in its position; depending on the application, this could be by burial, taping, or fixing with supports.
Connection: Connect the anode’s header cable or termination to your CP power source (rectifier), ensuring low-resistance joints.
Power Source: Use junction boxes, test leads, and reference electrodes to allow system monitoring and measurements.
Monitoring & Commission: Verify current output, voltage, and structure potentials to make sure protection criteria are met.
Inspections & Maintenance: Periodically inspect connections, performance, and integrity of the linear cable to ensure long service life.
