Overview
The CerAnode™ PBT PiggyBack™ Tank Bottom System is a continuous MMO linear anode system engineered for impressed current cathodic protection (ICCP) of aboveground storage tank (AST) bottoms. Designed for close-proximity deployment, the system delivers uniform current distribution beneath the tank floor for reliable corrosion protection and extended asset life.
Factory-assembled in concentric loop configurations, the PBT arrives ready for installation with integrated header connections that eliminate most field splices and simplify deployment. Its linear design improves electrical efficiency, lowers circuit resistance, and supports stable long-term cathodic protection performance.
The CerAnode™ PBT is ideal for new tank construction, re-bottom projects, double-bottom tanks, and secondary containment applications where space, current distribution, and long-term reliability are critical.
Key Features & Benefits
Continuous Linear Anode Design
Factory-assembled MMO linear anodes deliver uniform current distribution beneath the entire tank bottom.
Optimized Current Distribution
Concentric loop geometry minimizes current attenuation and supports even tank-bottom polarization.
Low Groundbed Resistance
Close-proximity deployment improves electrical efficiency and reduces rectifier power demand.
Factory-Assembled Configuration
Delivered pre-connected with integrated header leads to eliminate most field splices and simplify installation.
Long-Life MMO Technology
MMO-coated titanium construction provides excellent electrochemical stability and multi-decade service life.
Typical Applications
- Aboveground storage tank (AST) bottom cathodic protection
- Tank-bottom replacement and re-bottoming projects
- Double-bottom and secondary containment systems
- New tank construction with containment liners or membrane systems
- Annular ring and perimeter corrosion protection
Installation & Accessories
Factory-Assembled Loop Deployment
Delivered pre-configured in concentric loop assemblies for simplified installation beneath tank bottoms.
Integrated Electrical Connectios
Factory-connected redundant leads reduce field splicing and support reliable current distribution.
Optional Isolation Components
Available with dielectric mesh, conductive backfills, and custom lead assemblies for project-specific requirements.
Monitoring Compatibility
Compatible with rectifiers, test stations, reference electrodes, and remote monitoring systems.
Custom Tank Configurations
Available for varying tank diameters, current outputs, design lives, and containment system requirements.
Documentation
- Technical Data SheetDownload 2.5 MB
Engineered for your application
No two cathodic protection systems are identical. Tell us the current requirement, electrolyte and installation constraints and we will configure the anode around them.

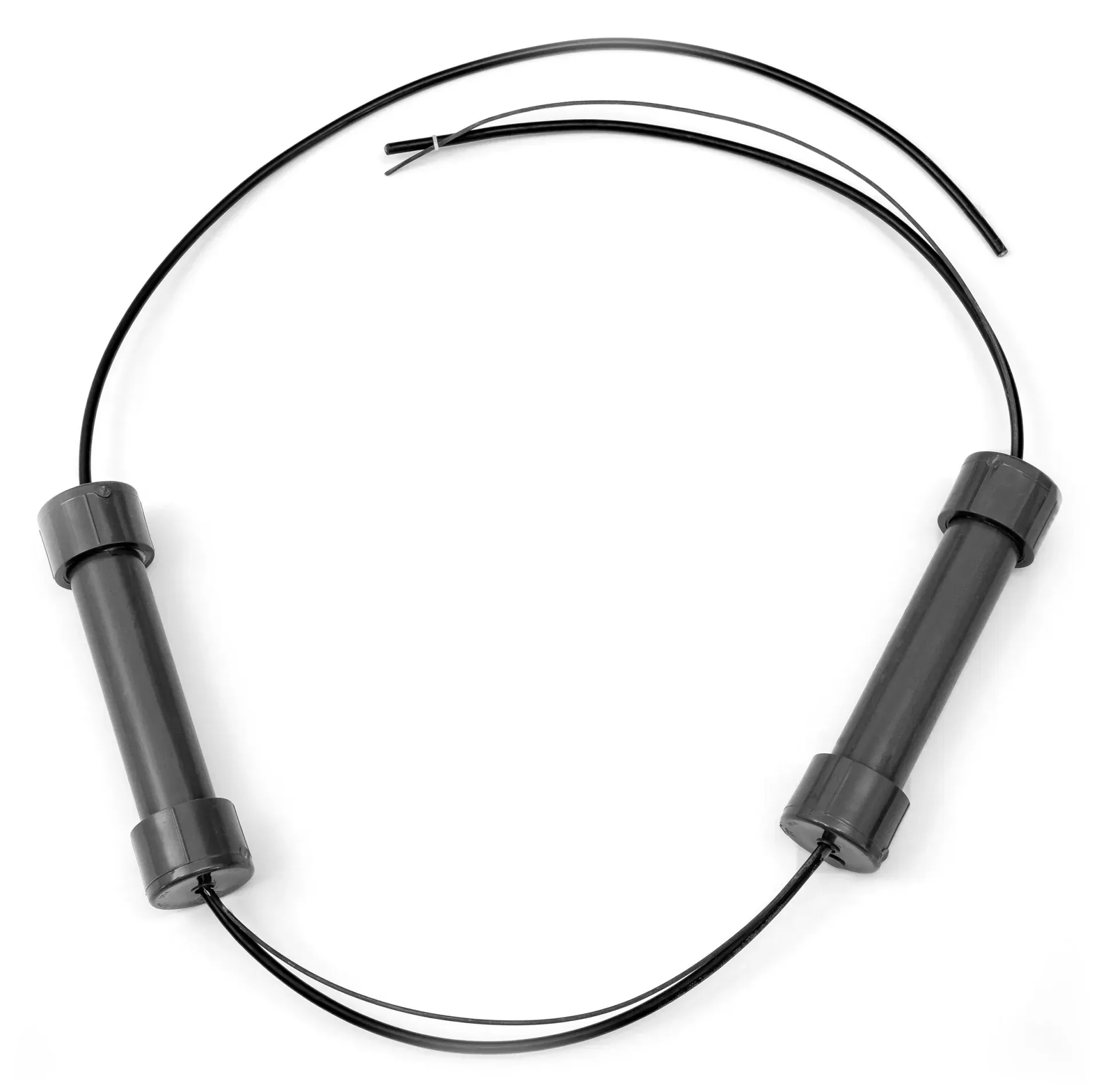

CerAnode™ Horizontal Water Tank Anode (WST-H)
