Overview

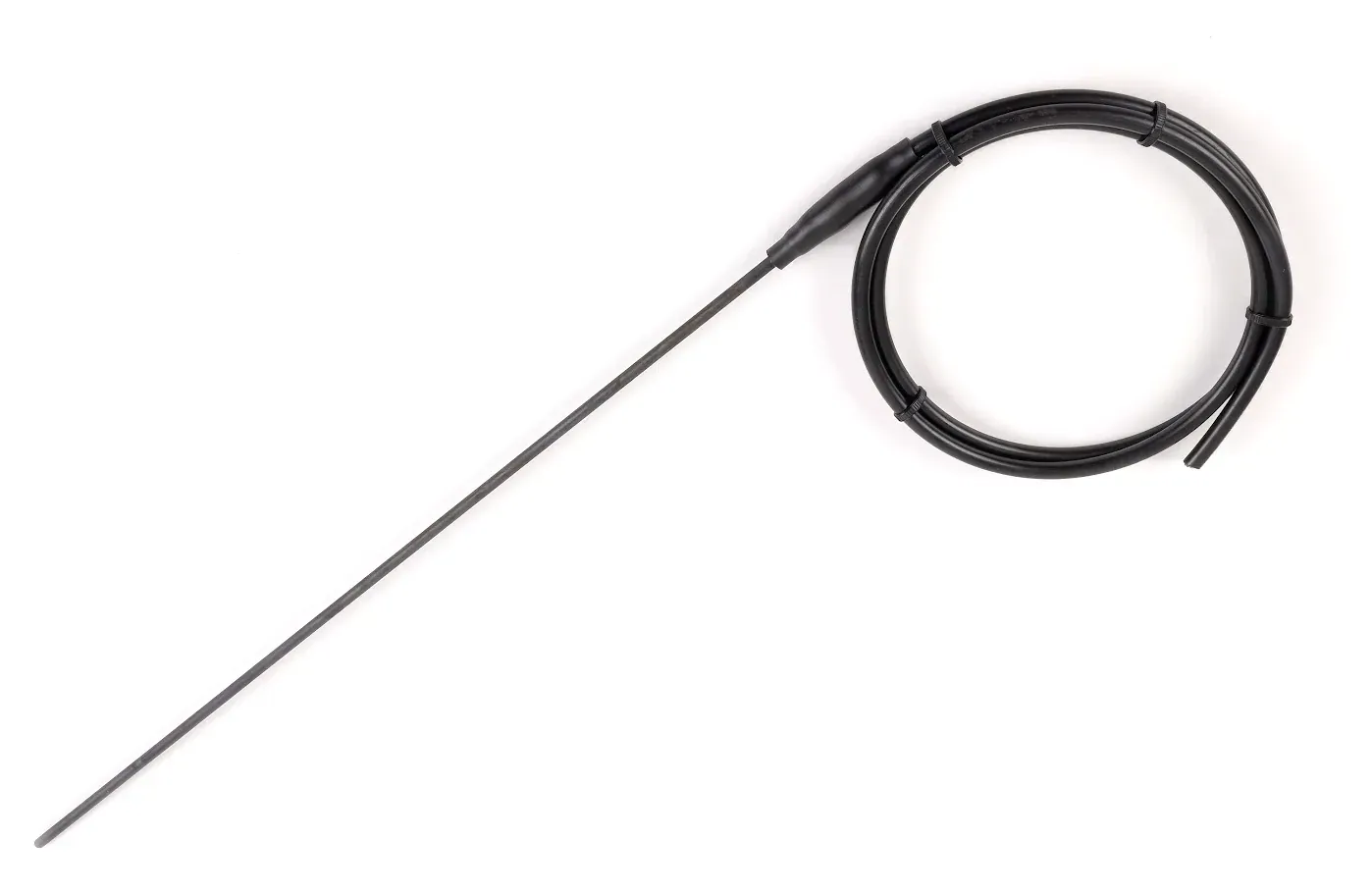

The CerAnode™ Rod Assembly (CRA) is a high-performance EMMO™ (Enhanced Mixed-Metal Oxide) rod anode engineered for impressed current cathodic protection (ICCP) systems across demanding environments. Designed for pipeline, tank, marine, and groundbed applications, it delivers consistent current output and long-term durability.

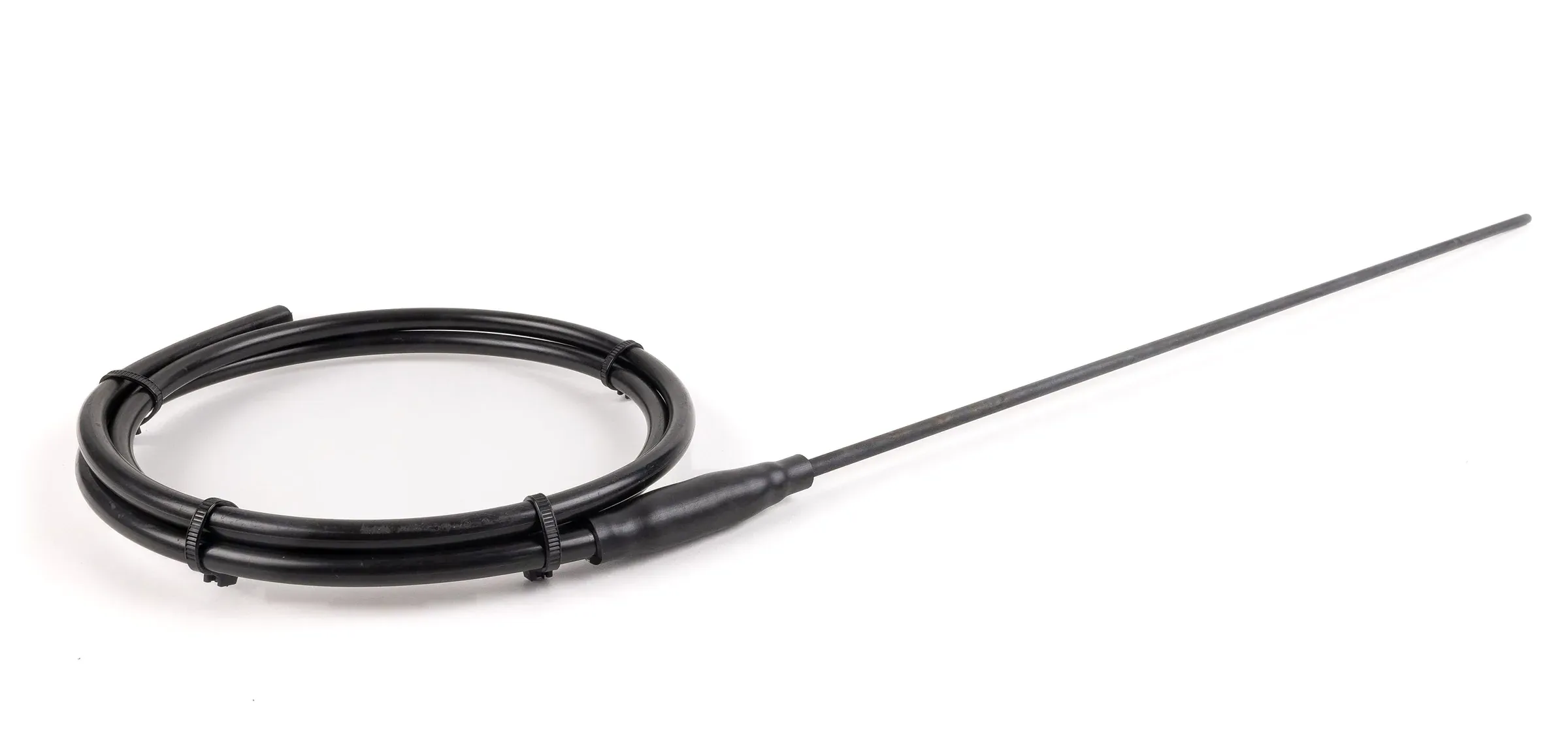

Constructed on a titanium substrate with a ceramic EMMO™ coating, the CRA provides a stable, corrosion-resistant surface optimized for extended service life. Factory-assembled cable connections and terminations ensure ultra-low electrical resistance and eliminate variability associated with field assembly.
Pre-engineered for reliability and ease of installation, the CRA enables efficient deployment of high-performance cathodic protection systems in both buried and submerged environments.
Key Features & Benefits
EMMO™ Coating Technology
Arc plasma–sprayed, mixed-metal oxide coating delivers a dense, mechanically bonded surface with significantly enhanced abrasion resistance over conventional MMO systems.
Low-Resistance Electrical Connection
Factory-terminated, moisture-sealed connections provide ultra-low resistance (<100 µΩ), ensuring efficient current transfer and system performance.
Factory-Assembled Design
Integrated cable and termination reduce field work, minimize installation risk, and improve consistency across installations.
Versatile Deployment
Suitable for pipelines, tanks, marine structures, and deep or shallow groundbed systems in soil and aqueous environments.
Proven Field Performance
Supported by extensive field use in critical infrastructure, delivering reliable long-term corrosion protection.
Typical Applications
- Buried and submerged pipeline systems
- Above-ground and buried storage tanks
- Marine and offshore structures
- Deep well and distributed groundbed systems
- Industrial and chemical processing facilities
Installation & Accessories
Industrial Process Integration
Designed for installation in process vessels, piping systems, and industrial water applications.
Secure Electrical Connections
Factory-sealed lead connections support stable ICCP performance in demanding environments.
Optional Mounting Accessories
Available with brackets, isolation components, and custom mounting assemblies.
Monitoring Compatibility
Integrates with CP monitoring systems, reference electrodes, and remote data collection platforms.
Custom Engineered Configurations
Available in multiple geometries, coatings, cable types, and current capacities.
Documentation
- Technical Data SheetDownload 47 KB
Engineered for your application
No two cathodic protection systems are identical. Tell us the current requirement, electrolyte and installation constraints and we will configure the anode around them.
