Overview
The Rugged Process Anode (RPA) is a compact, high-performance EMMO™ (Enhanced Mixed-Metal Oxide) anode engineered for impressed current cathodic protection (ICCP) in demanding process environments. Designed for tanks, piping, and industrial systems, it delivers consistent current output and long-term durability in confined and high-exposure applications.
Constructed on a high-strength titanium substrate with a ceramic EMMO™ coating, the RPA provides a stable, corrosion-resistant surface optimized for extended service life. CerAnode’s advanced coating and dielectric interface technologies ensure mechanical integrity and electrical isolation in aggressive chemical and marine environments.
Factory-assembled and fully sealed, the RPA features low-resistance connections that simplify installation while ensuring reliable, repeatable performance. It enables high-performance cathodic protection in applications where space is limited and system reliability is critical.
Key Features & Benefits
EMMO™ Coating Technology
Arc plasma–sprayed, mixed-metal oxide coating delivers a dense, mechanically bonded surface with significantly enhanced abrasion resistance over conventional MMO systems.
Low-Resistance Electrical Connection
Factory-sealed, corrosion-resistant connections ensure efficient current transfer and consistent system performance.
Compact, Factory-Assembled Design
Fully integrated assembly reduces field installation time, minimizes connection risk, and improves reliability.
Ruggedized Construction
Engineered dielectric interface and coating system provide mechanical stability and protection in chemically aggressive and high-chloride environments.
Versatile Deployment
Ideal for tanks, vessels, piping, and marine systems where space constraints and durability are critical.
Typical Applications
- Heat exchangers, water boxes, and process vessels
- Pumps, valves, and piping systems in industrial and chemical facilities
- Marine and offshore structures
- Tank interiors and contained fluid systems
- Industrial corrosion control in aggressive chemical environments
Installation & Accessories
Monitoring System Integration
Compatible with junction boxes, reference electrodes, and cathodic protection monitoring systems.
Direct & Secure Mounting
Designed for direct installation within tanks, vessels, water boxes, piping systems, and other process equipment, with application-specific mounting provisions to maintain proper anode positioning, electrical isolation, and exposure to the protected electrolyte.
Insulated Mounting Configuration
Installation should maintain electrical isolation between the titanium anode assembly and the protected structure to ensure proper ICCP current distribution.
Anode Placement
Proper positioning within the electrolyte is critical to current distribution and system performance. RPA placement can be configured according to tank geometry, fluid flow, protected surface area, and required current output.
Custom Assembly Options
Configurations can be tailored to the installation environment, including anode dimensions, connection arrangement, mounting provisions, cable lengths, and required current capacity.
Documentation
- Technical Data SheetDownload 522 KB
Engineered for your application
No two cathodic protection systems are identical. Tell us the current requirement, electrolyte and installation constraints and we will configure the anode around them.
CerAnode™ Power Rod (CPR)
The CerAnode™ Power Rod is a high-performance EMMO™ (Enhanced Mixed-Metal Oxide) tubular anode engineered for impressed current cathodic protection (ICCP) systems across demanding environments. Designed for deep, shallow, and horizontal anode beds, as well as naturally immersed applications, it delivers consistent current output and long-term durability.
CerAnode™ Rod Anode (CRA)
The CerAnode™ Rod Assembly (CRA) is a high-performance EMMO™ (Enhanced Mixed-Metal Oxide) rod anode engineered for impressed current cathodic protection (ICCP) systems across demanding environments. Designed for pipeline, tank, marine, and groundbed applications, it delivers consistent current output and long-term durability.
CerAnode™ Canister Anode (CAC-CPR)
The CerAnode™ Canister Anode (CAC-CPR) is a factory-assembled EMMO™ (Enhanced Mixed-Metal Oxide) anode system designed for impressed current cathodic protection (ICCP) in soil and submerged environments. Integrating a CerAnode™ Power Rod within a steel canister pre-filled with conductive carbon backfill, it provides a complete, installation-ready solution for distributed and shallow groundbed systems.
CerAnode™ Sled Anode (SLED)
The CerAnode™ Sled Anode is a high-performance EMMO™ (Enhanced Mixed-Metal Oxide) anode system engineered for impressed current cathodic protection (ICCP) in marine and coastal environments. Designed for seabed deployment, it delivers stable current output and long-term durability for submerged structures.
CerAnode™ Expandable Rod Anode (EAR)
The CerAnode™ Expandable Rod Anode (EAR) is a high-performance EMMO™ (Enhanced Mixed-Metal Oxide) anode engineered for impressed current cathodic protection (ICCP) systems requiring flexible deployment and optimized current distribution. Designed for deep, shallow, and irregular anode bed geometries, it delivers consistent current output and long-term durability.

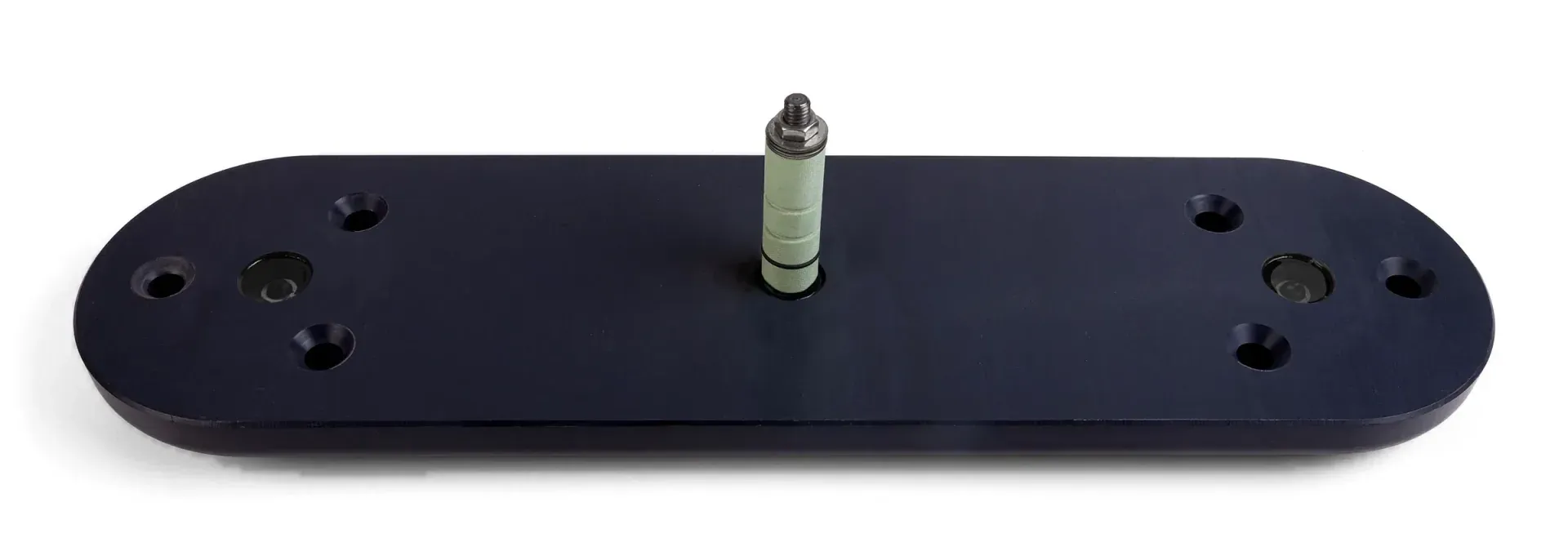

CerAnode™ Strip Anode (CAS)
